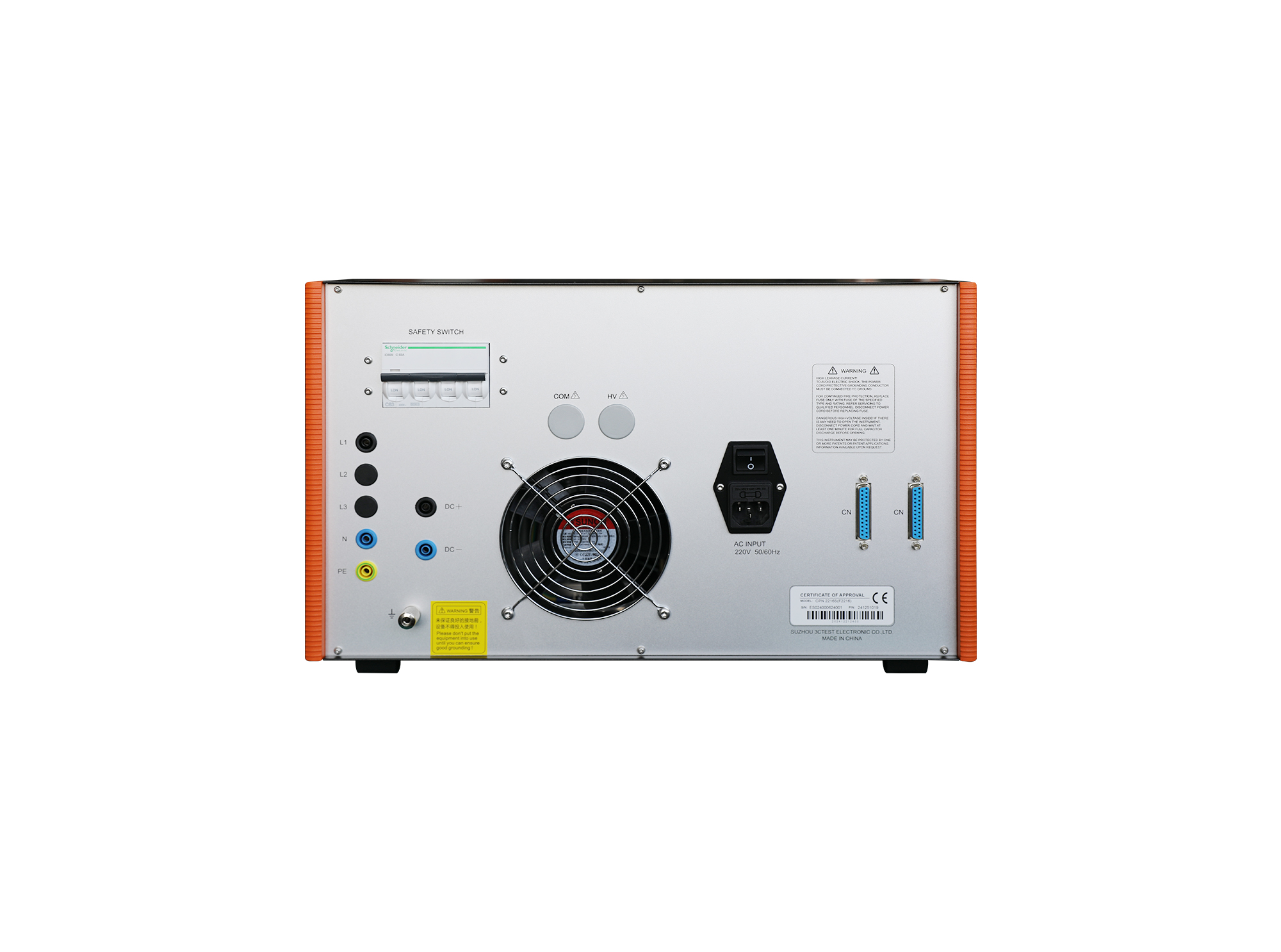

Current Wave Coupling/Decoupling Network

CPN 2216S

The CPN 2216S is a current wave coupling/decoupling network developed in compliance with IEC 61643-11 and GB/T 18802.11.

It works with S6 series generators for 8/20 μs current waveform tests. The maximum coupled pulse current reaches 6 kA. Maximum EUT load capacity: single-phase AC 220 V 16 A, DC 220 V 16 A. The unit features simple, fast operation and high reliability.

> Max. EUT rating is  AC 220 V, DC 220 V, 16 A

> Complies with EN/IEC 61643-11, GB/T 18802.11 standards

> Maximum coupled pulse current is 6 kA

> Fully-automatic coupling mode
