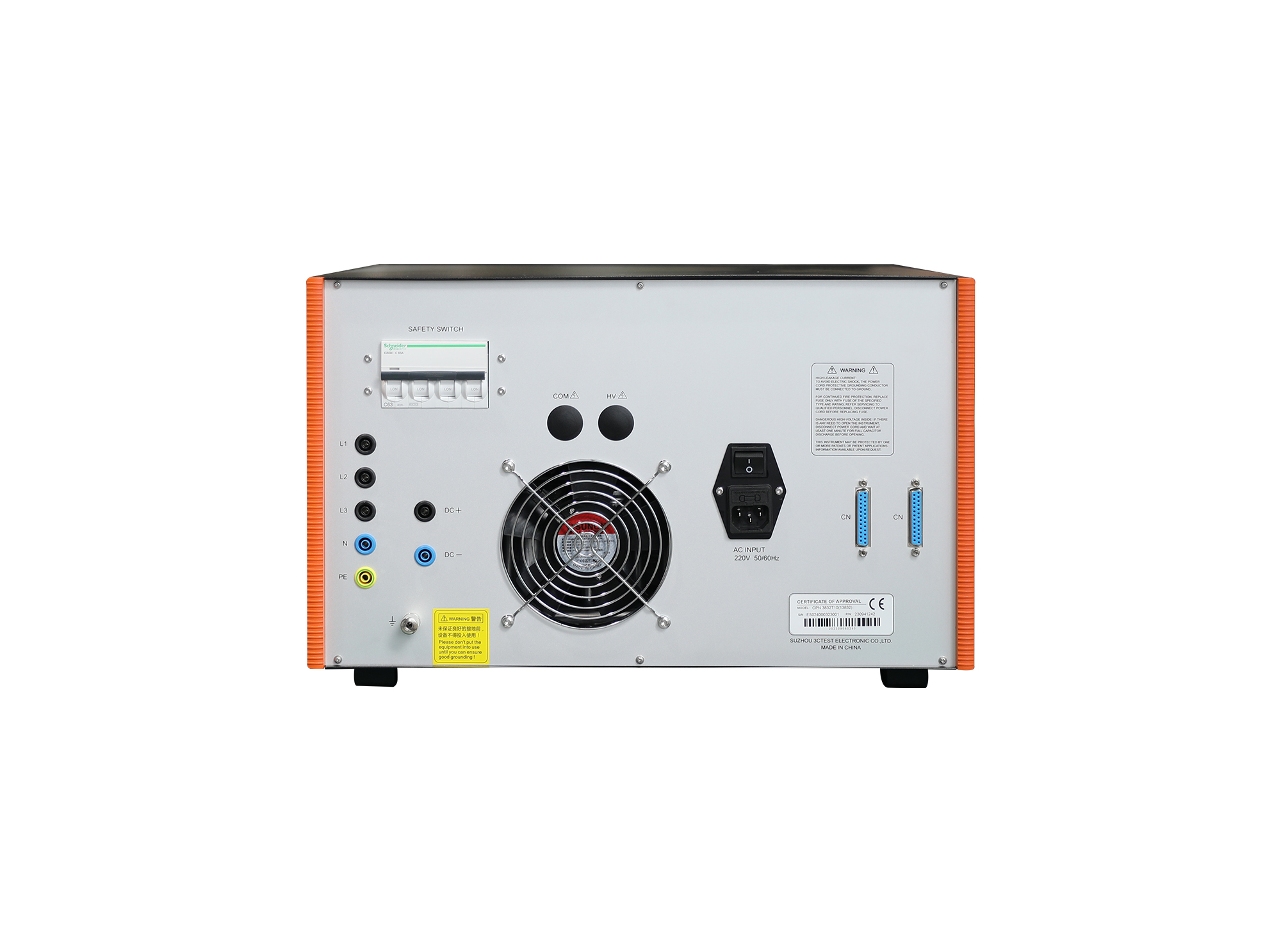

Current Wave Coupling/Decoupling Network

CPN 3832T10

The CPN 3832T10 is a current wave coupling/decoupling network developed in compliance with IEC 61643-11 and GB/T 18802.11.

It works with S6C1000 generators for 8/20 μs current waveform tests. The maximum coupled pulse current reaches 10 kA. Maximum EUT load capacity is AC 380 V 32 A, DC 380 V 32 A (three-phase, five-wire) . The unit features simple, fast operation and high reliability.

> Max. EUT rating is AC 380 V, DC 380 V, 32 A

> Complies with EN/IEC 61643-11, GB/T 18802.11 standards

> Maximum coupled pulse current is 10 kA

> Fully-automatic coupling mode
