Impulse Current Control Unit / Impulse Current Simulator

S12A500/MCS 2000-6U

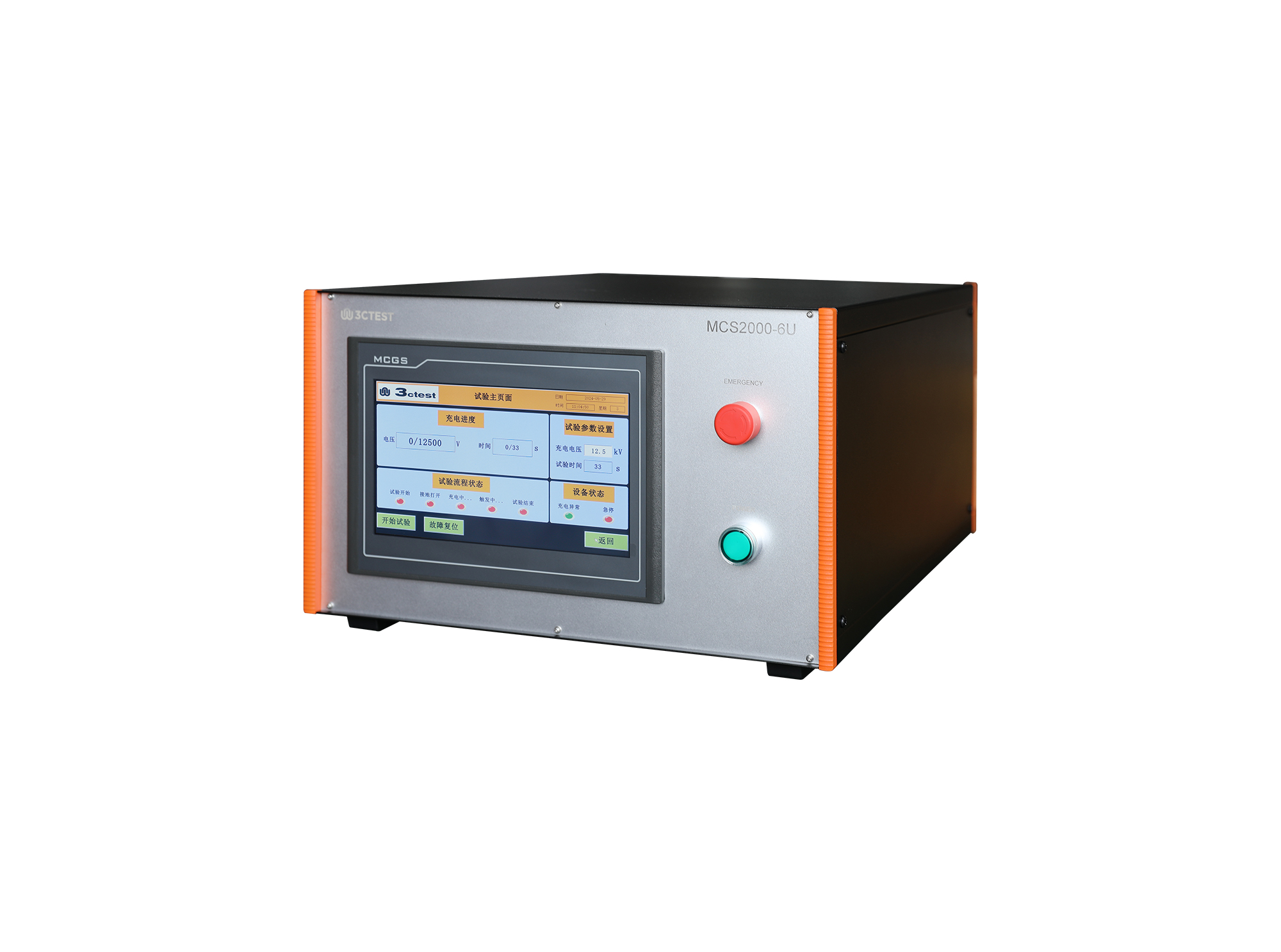

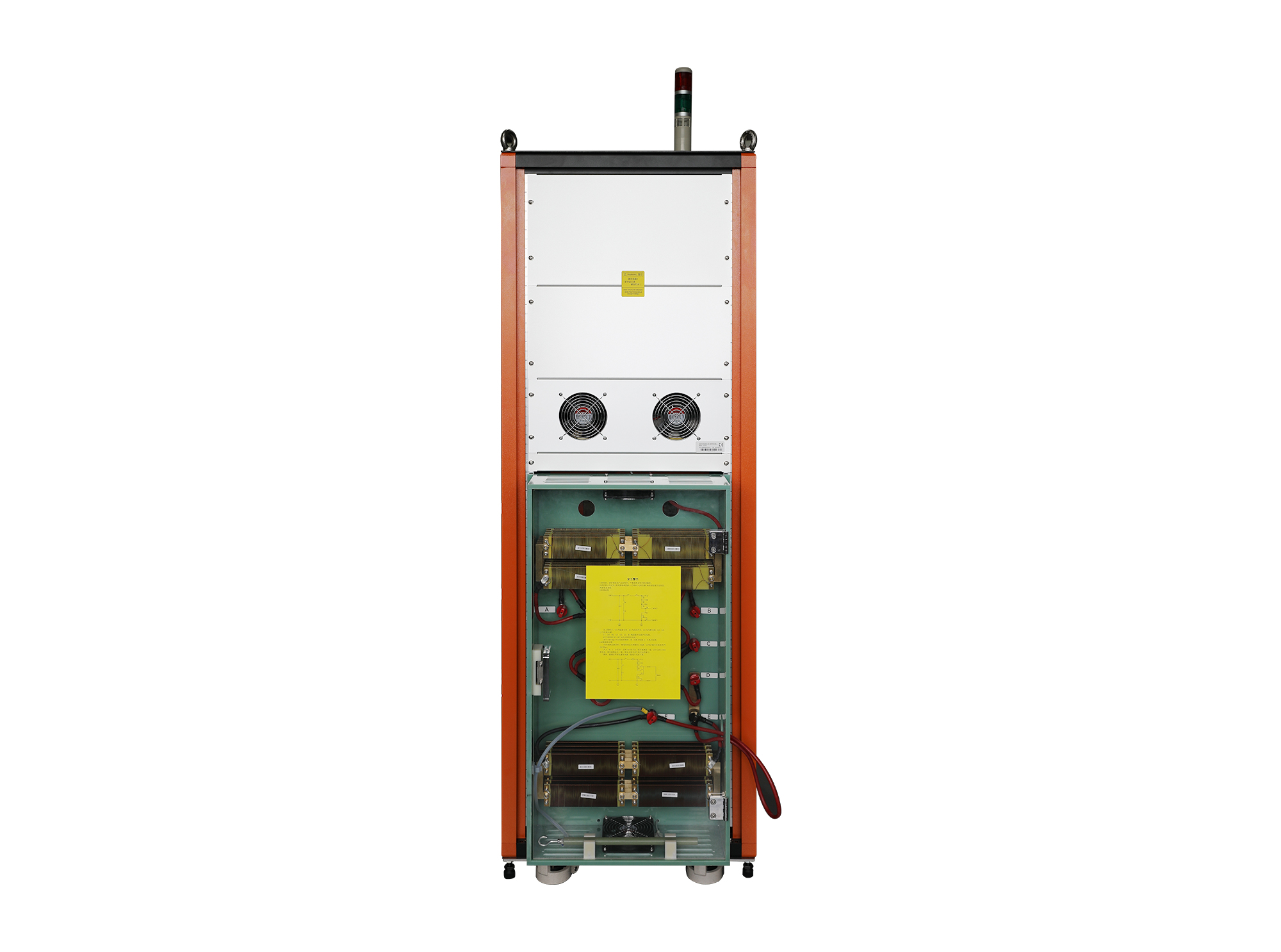

The Impulse Current Test System consists of the MCS2000-6U control unit and the S12A500 simulator.

Request a Quote Add to Compare Add to Quote List

Introduction

The Impulse Current Test System consists of the MCS2000-6U control unit and the S12A500 simulator. It can generate a 10/350 μs impulse current waveform with a Max. output current of 5,000 A.

Features

> 10-inch color touch screen front panel operation

> Max. test current 5 kA

> Support text sequence function and easy operation

> The control unit is separated from the simulator and supports remote operation

> Fiber-optic communication for stable and reliable operation

Standards

IEC Standards

IEC 61643-11

GB/T Standards

GB/T 18802.11

Other Standards

GB/T 16927.4

Application Areas

Specification

Technical Parameters

Test Current Range	100 A ~ 5,000 A，±10%
Current Waveform	Front time: 10 μs ± 20% Time to half value: 350 μs ± 20% Front time definition: 10% ~ 90% Time to half value definition: 0% ~ 50%
Output Polarity	Positive
Source Output Impedance	2.5 Ω

General Parameters

Accessories

Standard Accessories

Power Cord, User Manual, Test Cables, Grounding Wire, Fuse

Request a Quote

Interested in our products? Leave us a message, and our team will get back to you soon!

Prev: Impulse Current Generator Next: Impulse Current Simulator Back to list

Display Screen	10” TFT touch screen
Working Power	AC 220 V，±10%，50/60 Hz ±5%
Fuse	6A (MCS2000-6U) /10 A (S12A500)
Max. Power Consumption	1,500 W
Trigger Mode	Auto
Grounding Method	Flat grounding wire
Dimension	6 U rack, L * W * H: 550 * 280 * 450 (MCS2000-6U) 35 U rack, L * W * H: 800 * 600 * 1,850 mm (S12A500)
Weight	Approx.15 kg (MCS2000-6U) Approx. 300 kg (S12A500)
Atmospheric Pressure	86 kPa ~ 106 kPa
Ambient Temperature	15℃ ~ 35℃
Relative Humidity	45% ~ 75%
