Impulse Current Simulator

S5A250

The S5A250 is a new type of impulse current simulator developed in compliance with IEC 61643-11.

Request a Quote Add to Compare Add to Quote List

Introduction

The S5A250 is a new type of impulse current simulator developed in compliance with IEC 61643-11. It can output a 10/350 μs impulse current waveform with a Max. output current of 2,600 A.

Features

> 5.7-inch color touch screen front panel operation

> Max. test current 2,600 A

> Convenient operation

> Ethernet LAN communication, stable and reliable

Standards

IEC Standards

IEC 61643-11

GB/T Standards

GB/T 18802.11

Application Areas

Specification

Technical Parameters

Test Current Range	100 A ~ 2,600 A，±10%
Current Waveform	Front time: 10 μs ± 10% Time to half value: 350 μs ± 10% Front time definition: 1.25*rise time (10% ~ 90%) Time to half value definition: 50% ~ 50%
Output Polarity	Positive, negative, alternative
Pulse Period	5 s ~ 180 s
Test Count	1 ~ 10,000
Trigger Mode	Manual, Auto, External Trigger
Communication Mode	Ethernet, RJ45
Auxiliary Interface	D-sub 25p
Safety Circuit	Stop working when the safety loop is not closed

General Parameters

Accessories

Standard Accessories

Power Cord, User Manual, Test Cables, Grounding Wire, Fuse

Request a Quote

Interested in our products? Leave us a message, and our team will get back to you soon!

Prev: Impulse Current Simulator Next: Impulse Current Generator Back to list

Display Screen	5.7” TFT touch screen
Working Power	AC 220 V，±10%，50 Hz (±5%)
Fuse	10 A
Max. Power Consumption	1,200 W
External Trigger Input	BNC, 5V TTL
CRO Trigger Output	BNC, 5V TTL
Operation Control Input	BNC, 5V TTL
Dimension	22U rack, 600(W) * 1,250(H) * 800(D) mm
Weight	Approx. 175 kg
Atmospheric Pressure	86 kPa ~ 106 kPa
Ambient Temperature	15℃ ~ 35℃
Relative Humidity	45% ~ 75%

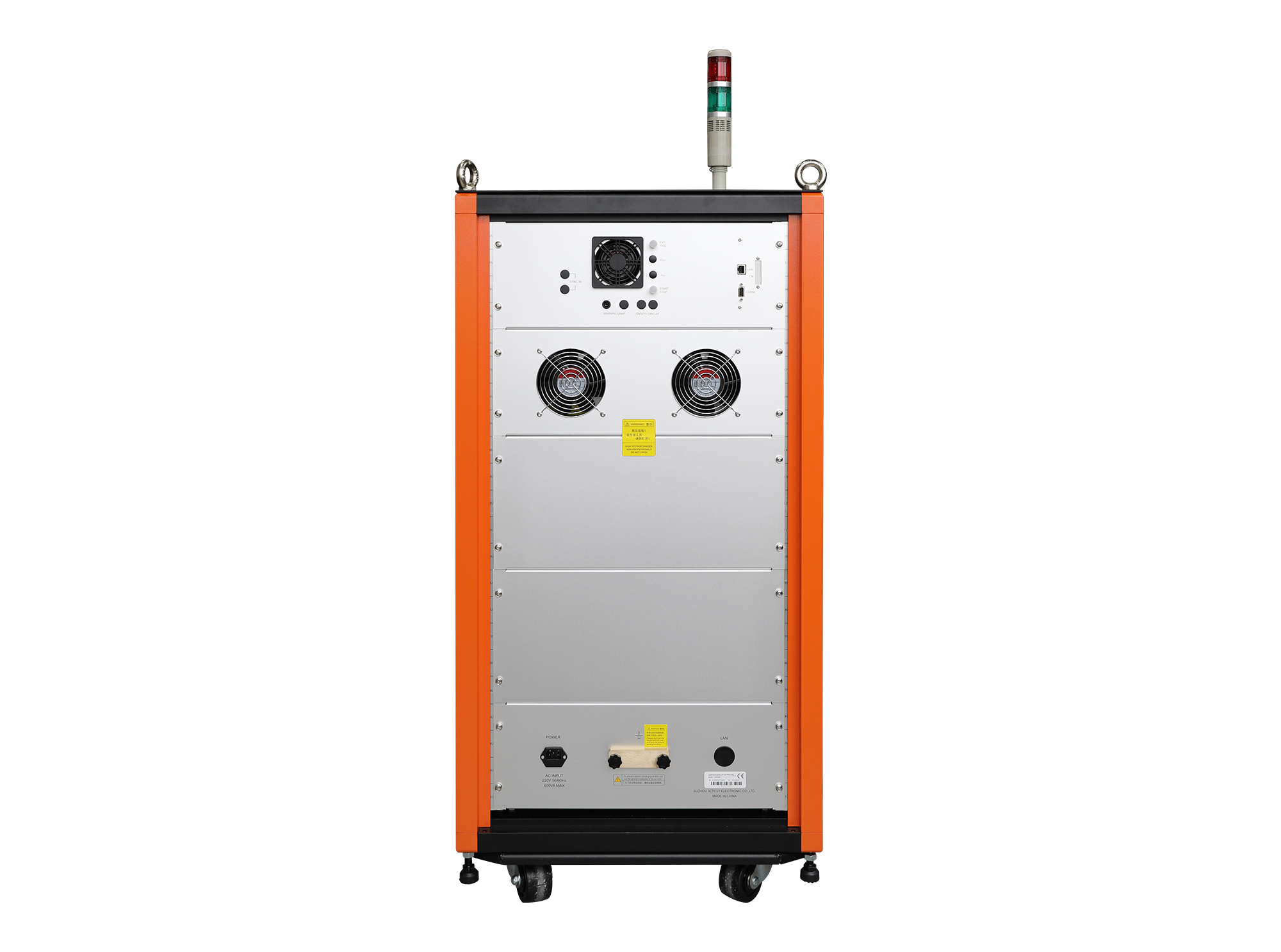

Impulse Current Simulator S5A250
