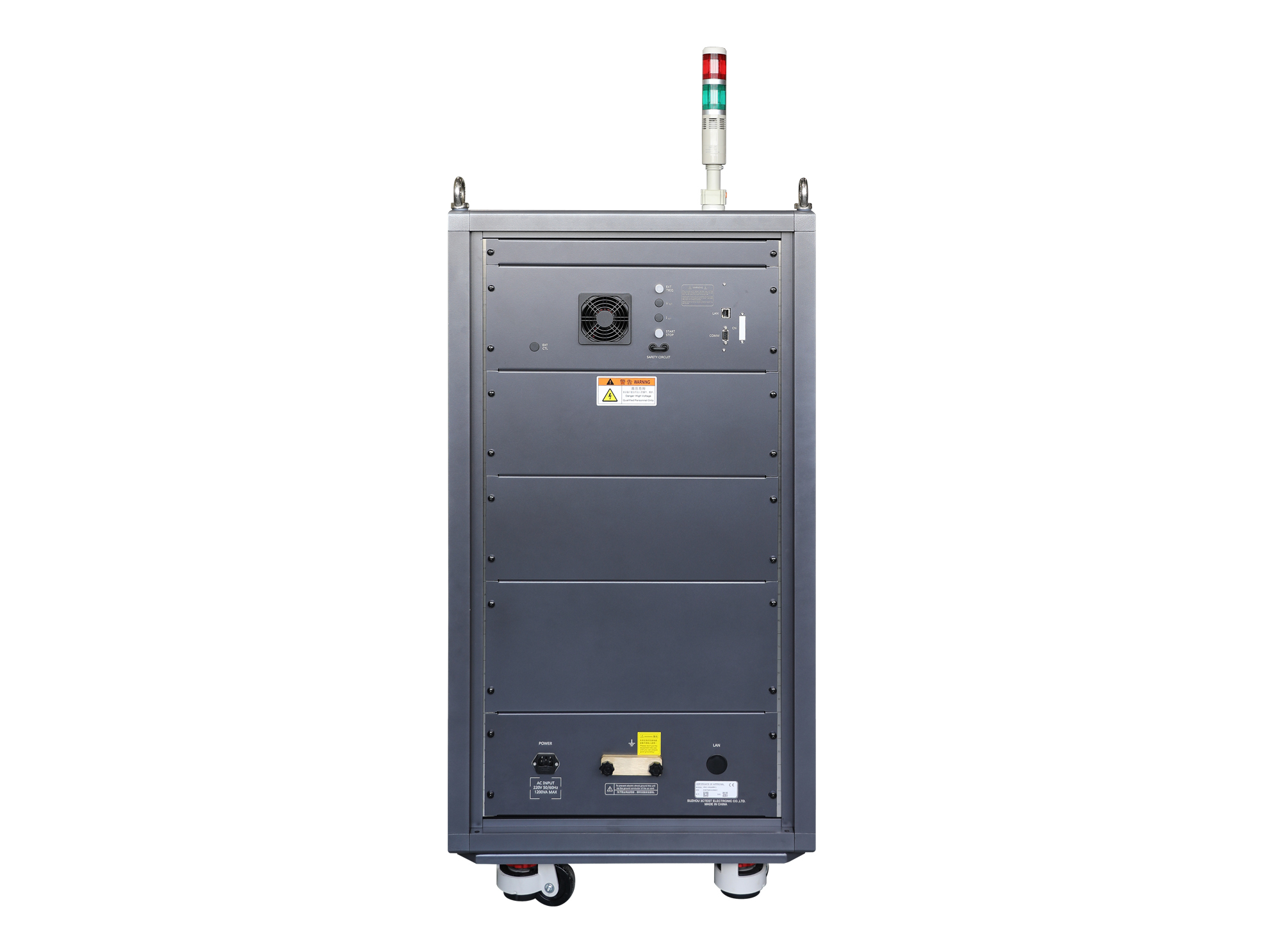

Impulse Voltage Simulator

VSG 4000(500Ω/0.2μF)

The VSG 4000(500Ω/0.2μF) Impulse Voltage Simulator complies with IEC 60060-1, IEC 60664-1, and IEC 61009-1 and is designed for insulation, voltage withstand, and surge testing of components and assemblies in impulse withstand testing applications.

Download Datasheet

Request a Quote Add to Compare Add to Quote List

Introduction

Based on a third-generation control platform, it generates the 1.2/50 μs impulse voltage waveform, providing a maximum pulse voltage of 40 kV and an output impedance of 500 Ω.

Features

> 5.7-inch color touchscreen front-panel operation

> Max. pulse voltage 40 kV

> Support real-time charging voltage display

> Support peak voltage measurement and display

> EUT breakdown leakage current alarm

> Emergency stop button for quickly cutting off high-voltage charging circuit and output

Standards

IEC Standards

GB/T Standards

Application Areas

Specification

Technical Parameters

Test Voltage	2 kV ~ 40 kV ± 10%
Open-circuit Voltage Waveform	Front time: 1.2 μs ± 30% Duration: 50 μs ± 20%
Output Impedance	500 Ω
Voltage Resolution	1 V
Output Polarity	Positive, negative and alternative
Pulse Period	9 s ~ 99 s (the minimum time depends on the test voltage)
Test Counter	1 ~ 10,000
Trigger Mode	Auto, manual, external trigger
Test Mode	Test sequence of test parameters
Voltage Display	Real-time display peak and charging voltage
Safe Circuit	Press emergency stop button for quickly cutting off high-voltage charging circuit and output
EUT Breakdown Leakage Current	100 mA ~ 1,200 mA

General Parameters

Accessories

Standard Accessories

User Manual, Fuse, Power Cord, Test Cable, Grounding Wire

Request a Quote

Interested in our products? Leave us a message, and our team will get back to you soon!

Prev: Impedance Box 500Ω Next: Impulse Voltage Simulator Back to list

Display	5.7-inch TFT touchscreen
Working Power	AC 220 V ±10%, 50 Hz /60 Hz
Fuse	6 A
Max. Power Consumption	1,200 W
Communication Mode	Ethernet LAN, RJ45
Working status indication	Front panel LED indication and LCD display
Grounding Method	Flat grounding wire
Dimension	22U rack, 600 (W)1,600 (H)900 (D) mm (incl. alarm indicator light)
Weight	Approx. 175 kg
Ambient Temperature	15 ℃ ~ 35 ℃
Relative Humidity	45% ~ 75%
Atmospheric Pressure	86 kPa ~ 106 kPa
