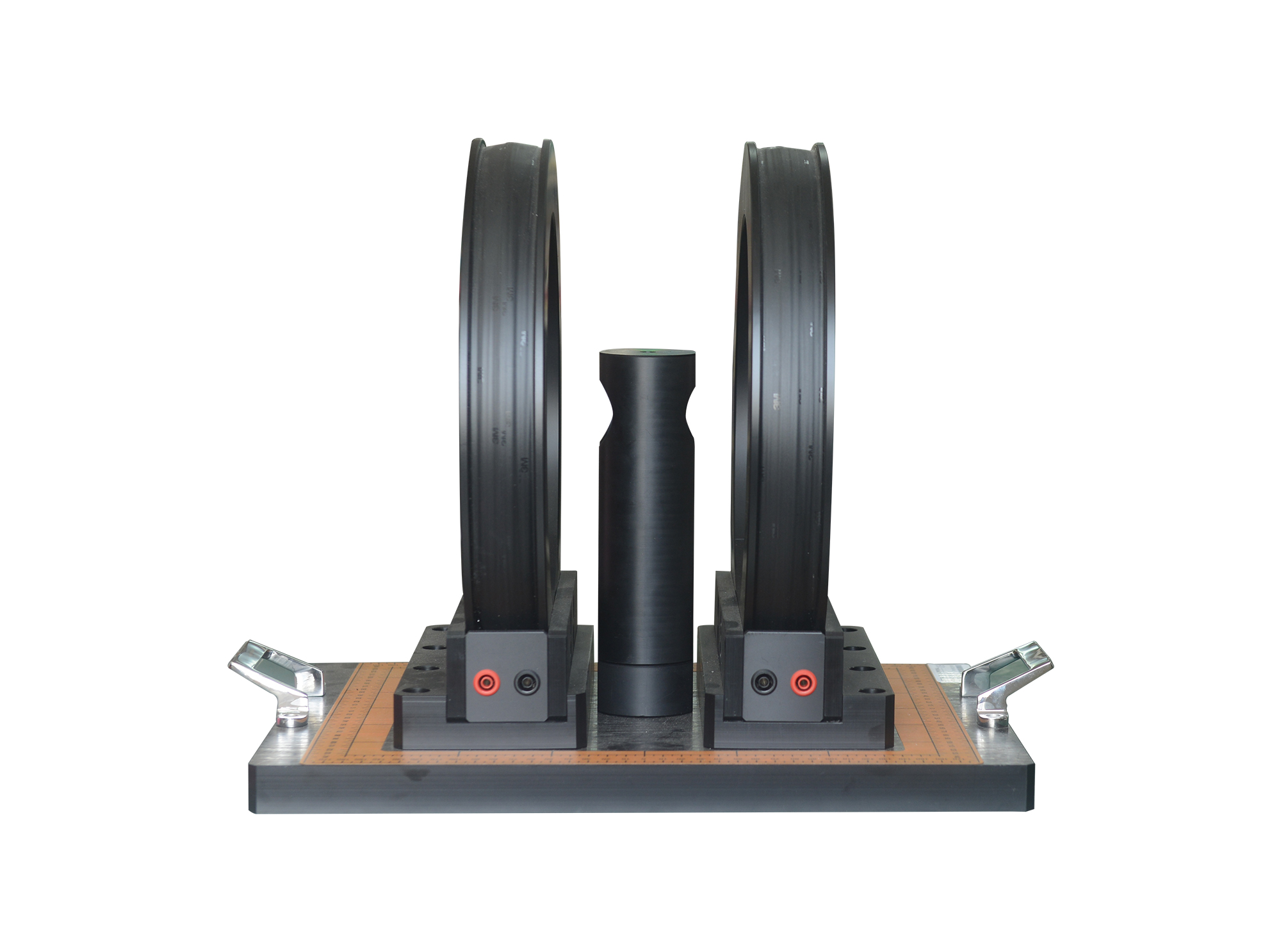

AC Helmholtz Coil

TYXH 03100

TYXH 03100 AC Helmholtz coil complies with ISO 11452-8, MIL-STD-461E/F/G, and GJB151A/B RS101 RS101.

Request a Quote Add to Compare Add to Quote List

Introduction

TYXH 03100 AC Helmholtz coil complies with ISO 11452-8, MIL-STD-461E/F/G, and GJB151A/B RS101 RS101. It generates alternating magnetic field with frequency range DC ~ 150 kHz, and is applicable to magnetic field immunity test.

Features

> Wide test frequency range;

> Uniform magnetic field distribution;

> Large dynamic range of magnetic field strength

Standards

ISO Standards

ISO 11452-8

GJB Standards

Other Standards

MIL-STD-461G

Application Areas

Specification

Technical Parameters

Max. Current (rms)	20 A
Max. Magnetic Field Strength	≤1,000 A/m @1 kHz ≤10 A/m @150 kHz
Frequency	DC ~ 150 kHz

General Parameters

Accessories

Standard Accessories

Connecting Cable, Magnetic Field Probe Calibration Fixture, User Manual

Request a Quote

Interested in our products? Leave us a message, and our team will get back to you soon!

Prev: Helmholtz Coil Next: Magnetic Field Coil Back to list

Diameter	300 mm
Dimension	470 mm (L)360 mm (W)320 mm (H)
Weight	Approx. 15 kg
