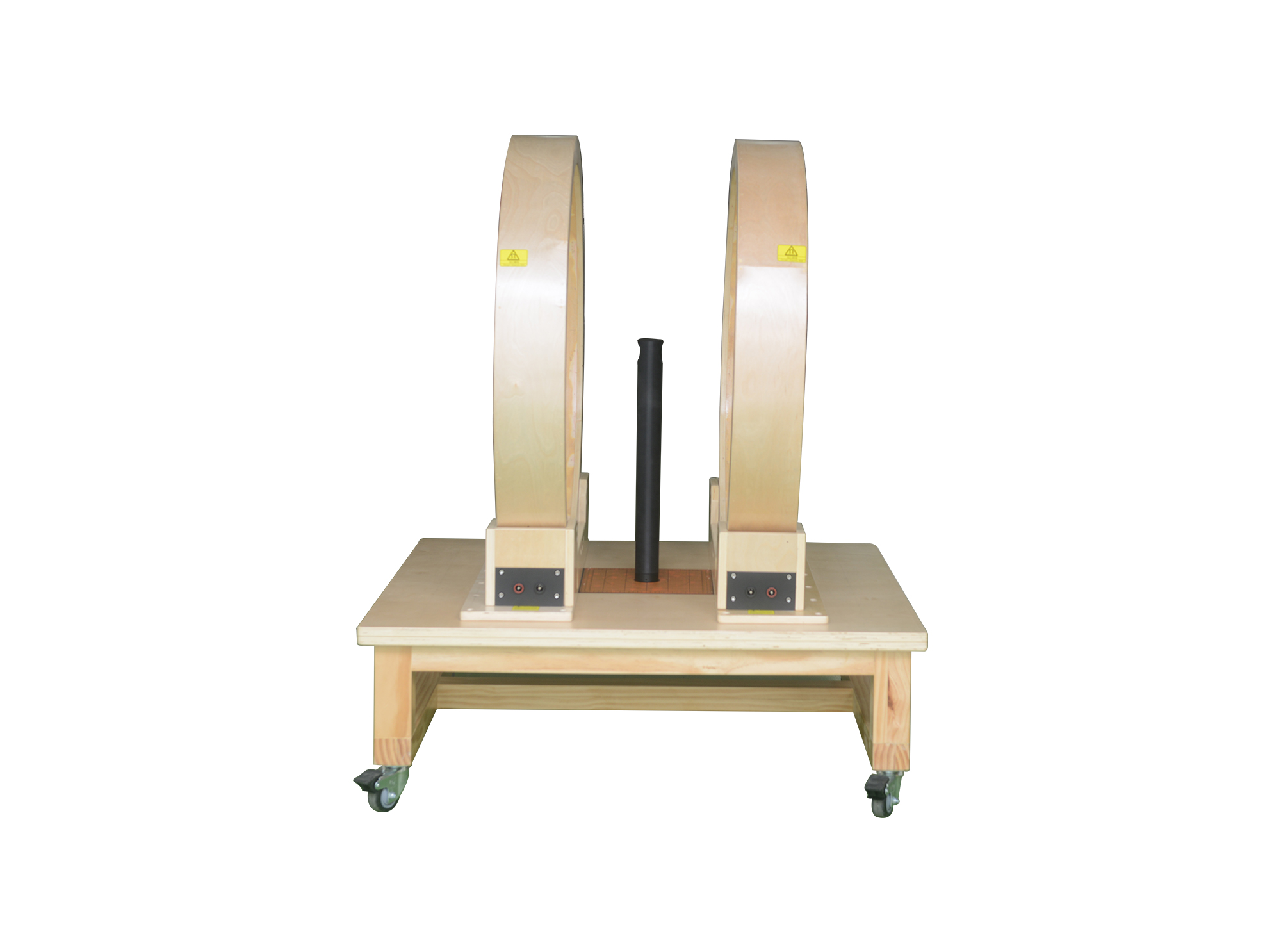

Magnetic Field Coil

TYXH 1300

TYXH 1300 magnetic field coil generates DC magnetic field, fully compliant with ISO 11452-8, GJB151A\B RS101, and MIL-STD-461E\F\G, applied to magnetic field immunity test.

Download Datasheet

Request a Quote Add to Compare Add to Quote List

Features

> Wide test frequency range;

> Uniform magnetic field distribution;

> Large dynamic range of magnetic field strength

Standards

ISO Standards

ISO 11452-8

GJB Standards

GJB 151A
GJB 151B

Other Standards

MIL-STD-461G

Application Areas

Automotive Electronics
Military

Specification

Technical Parameters

Max. Current	30 A
Max. Magnetic Field Strength	≤ 3,000 A/m
Frequency	DC
Coil Turns	150 turns

General Parameters

Accessories

Standard Accessories

Connecting Cable, Magnetic Field Probe Calibration Fixture, User Manual

Request a Quote

Interested in our products? Leave us a message, and our team will get back to you soon!

Prev: AC Helmholtz Coil Next: Helmholtz Coil Back to list

Diameter	1,000 mm
Dimension	1,200 mm (L)1,100 mm (W)1,472 mm (H)
Weight	Approx. 130 kg
