Airborne DC Power Characteristic Test System

PDG 08C05

The PDG 08C05 Airborne DC Power Characteristic Test System supports DC 14 V, 28 V test, in compliance with MIL-STD-704F, DO160 S16/S18, HB 20326.8, GJB 181-86 and GJB 181A/B. Its total voltage harmonic distortion is below 0.3% under all load conditions, with frequency from DC to 200 kHz.

Download Datasheet

Request a Quote Add to Compare Add to Quote List

Introduction

Adopted real-time processor technology, the system is equipped with high-performance PC and Corelab test software. It enables arbitrary waveform editing to simulate complex waveforms, and provides preset waveforms and EMC and aerospace standard test items. The software also supports automatic test report generation.

Features

> Support harmonics output

> Support ripple closed-loop test

> Full-power four-quadrant power supply

> Adaptive remote compensation function

> Wide frequency range: DC ~ 200 kHz

> Max. output power 4 kW

> Voltage and current monitoring and protection

> Ethernet RJ45 interfaces for PC remote control and printing test reports

> Built-in arbitrary waveform generator for any complex waveform editing

> Support DC output, Max. voltage 80 V, Max. current 50 A

Standards

GJB Standards

GJB 181

Other Standards

Application Areas

Specification

Technical Parameters

Max. Output Power	4 kW
Max. DC Voltage	± 80 V
Max. DC Current	± 50 A
DC Voltage Accuracy	± (0.2%+0.2% F.S.)
DC Current Accuracy	± (0.2%+0.5% F.S.)
Voltage/Current Setting Resolution	0.01 V/0.01 A
Voltage/Current Display Resolution	0.01 V/0.01 A
Harmonics Voltage	0 V ~ 20 V
Harmonics Voltage Setting Resolution	0.001 V
Harmonics Voltage Display Resolution	0.001 V
Harmonics Frequency	1 kHz ~ 50 kHz (higher frequencies are available on request)
Harmonics Frequency Setting Resolution	0.001 Hz
Harmonics Frequency Display Resolution	0.001 Hz
Total Voltage Harmonic Distortion (THDv)	＜0.3%
Ripple Noise @20MHz bandwidth	V_PP≤ 0.2 V Vrms≤ 0.05 V

General Parameters

Accessories

Standard Accessories

Power Cord, User Manual, Test Cables, Flat Grounding Cable

Request a Quote

Interested in our products? Leave us a message, and our team will get back to you soon!

Prev: Vehicle-Mounted Power Failure Simulator Next: Airborne AC/DC Power Characteristic Test System Back to list

Protection	Overcurrent, overvoltage, undervoltage, overpower, overtemperature protection
Display Screen	5.7" TFT touch screen
Power Input Interface Type	32 A industrial circular connector
Control Port Communication Interface	Ethernet LAN (RJ45 interface)
Working Power	AC 380 V, 50 Hz/60 Hz
Grounding Connection	Flat grounding wire
Front/Rear Panel Wiring Terminal	Φ6 terminal (75 A)
Dimension	600 mm (W)1,225 mm (H)900 mm (D)
Weight	Approx. 148 kg (including power supply)
Ambient Temperature	15 ℃ ~ 35 ℃
Relative Humidity	45% ~ 75%
Atmospheric Pressure	86 kPa ~ 106 kPa

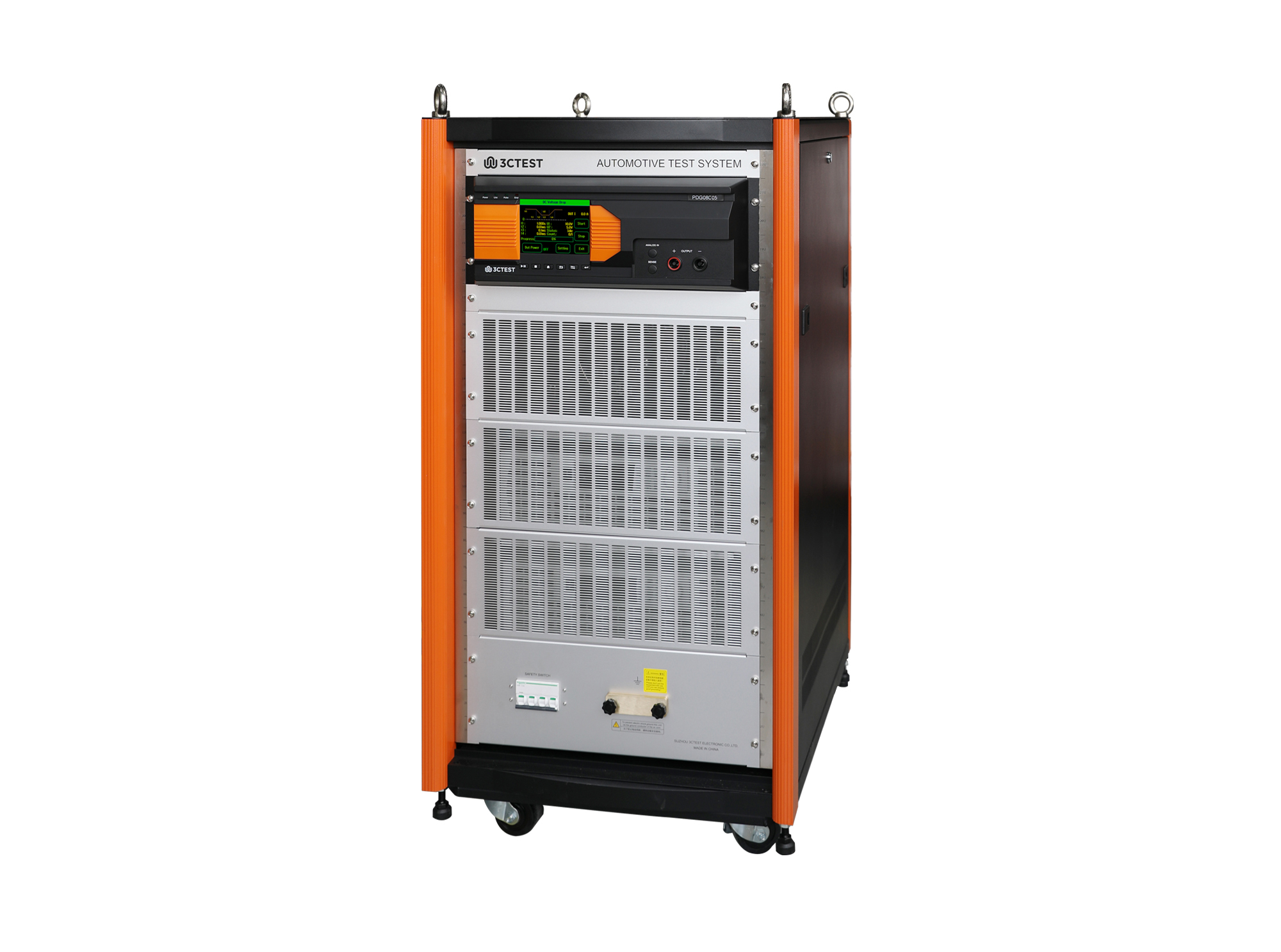

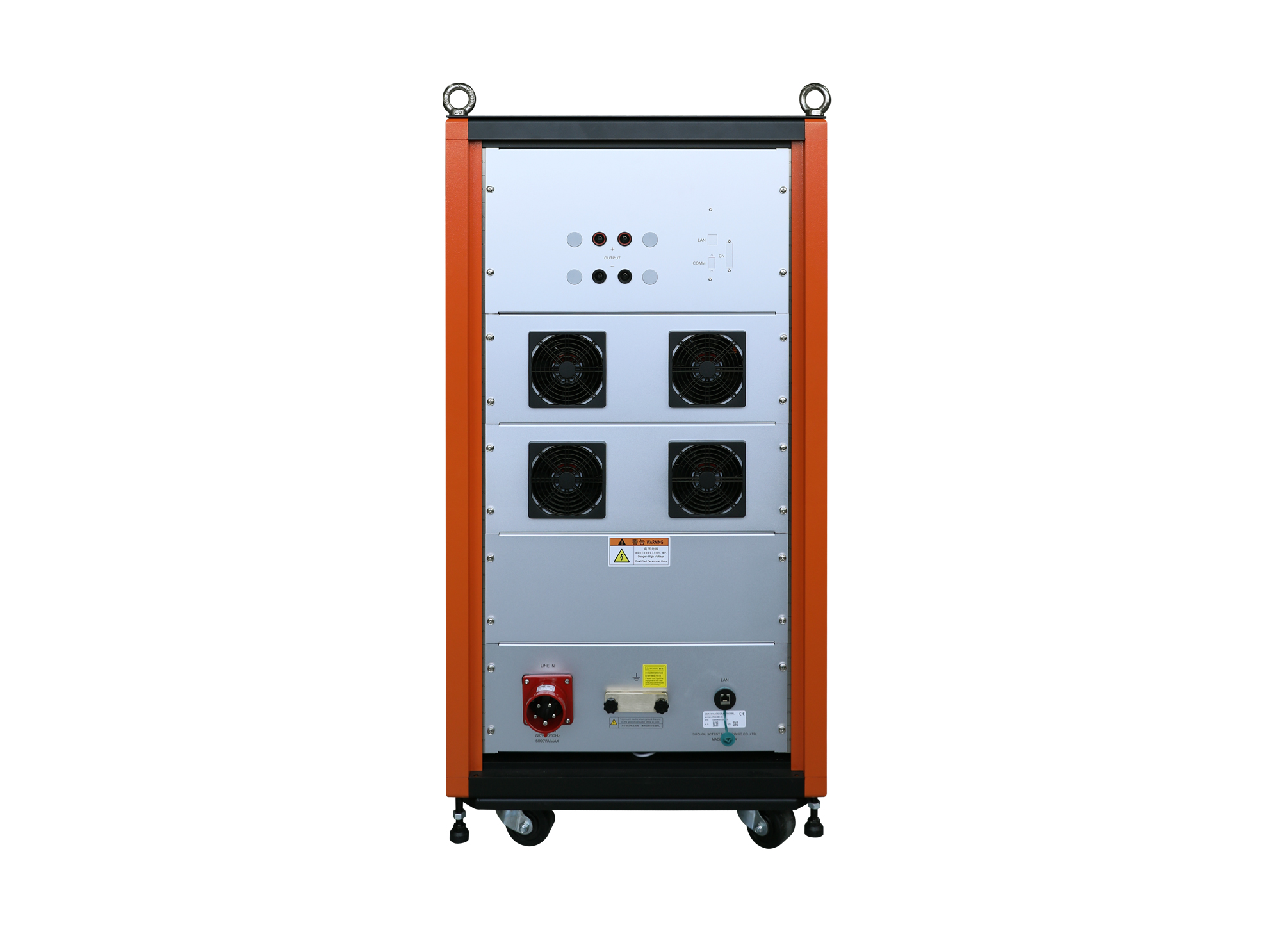

Airborne DC Power Characteristic Test System PDG 08C05
