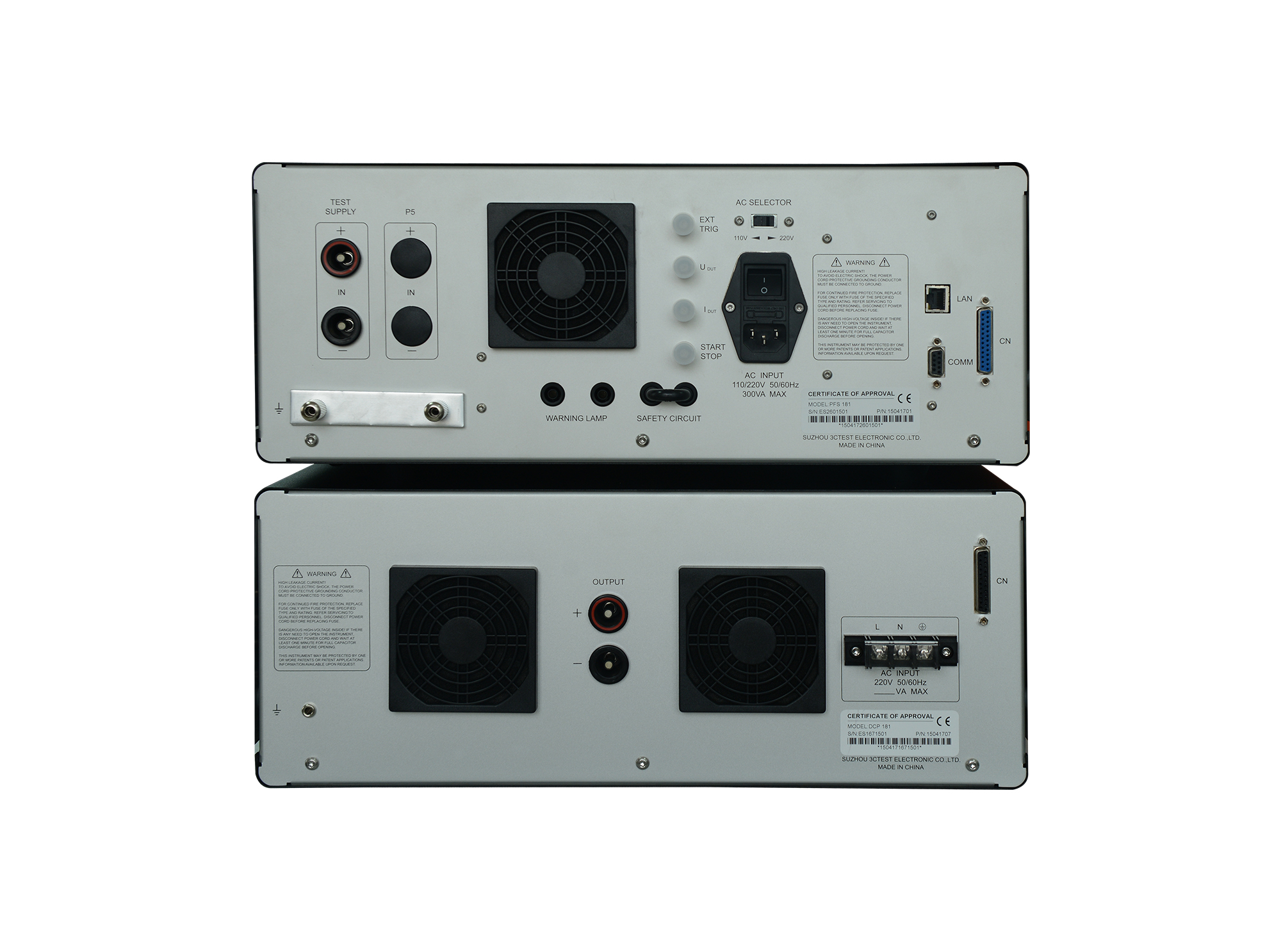

Vehicle-Mounted Power Failure Simulator

PFS 181

Voltage Dips / Surge Voltage

0 – 100 V, 0.1 V step

Voltage Dips / Surge Time

0.1 ms – 59.999 s

Voltage Rise / Fall Time

0.1 ms – 10 s, adjustable (the min. depends on the test voltage)

Upper/Lower Overshoot of Output Voltage

< 10% of voltage variation

(when load impedance of the generator is 100 Ω)

Time Interval

0.1 s – 60 s

Measuring Accuracy

Current: 1% ± 0.1 A

Max Output Current (Steady State)

See Optional Models

No. of Tests

1 – 9,999

No. of Ripple

< 1% of rated output voltage

Over-Current Protection Mode

Set arbitrarily from 1A to max. value of current

Load Adjustment Rate

<5% (rate of change of the voltage with the load, 0 to rated current)

Output Impedance for Interruption

>100 kΩ
