Artificial Main Network

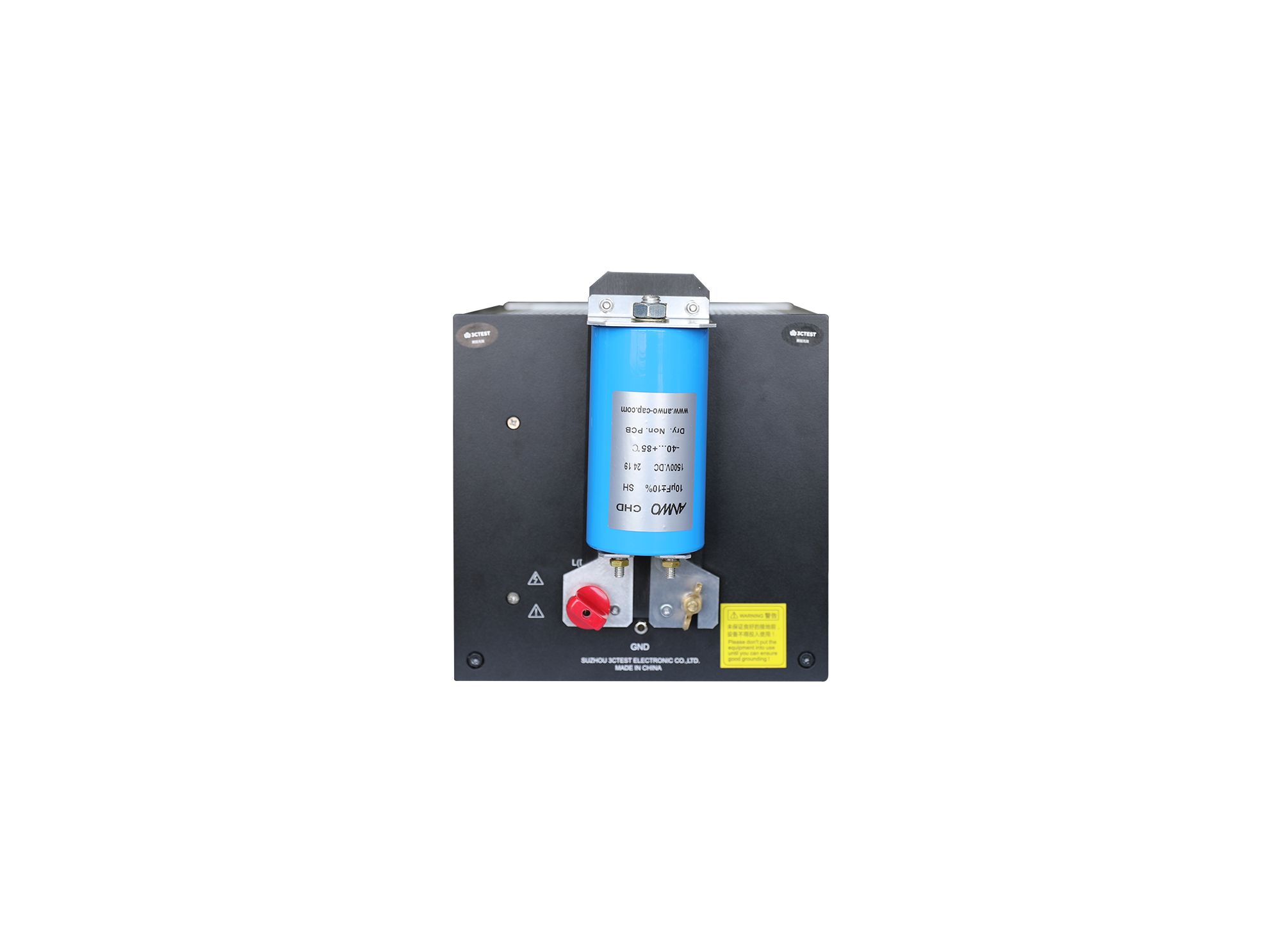

LISN AR 100

The LISN AR 100 Artificial Main Network is designed in accordance with RTCA/DO-160 Section 20 and Section 22. It provides a defined power impedance at the EUT power input to ensure consistent and repeatable test results.

During testing, the output port is connected to the EUT, and the input port is connected to the power supply. The 50 Ω coaxial output port is equipped with a BNC connector.

> Max. load current 100 A

> Test voltage DC 600 V; 500 V, 400Hz, 270 V, 890 Hz

> Frequency range 10 kHz ~ 400 MHz

> Standard BNC interface for EMI terminal

> Stable performance and easy connection
