Line Impedance Stabilization Network

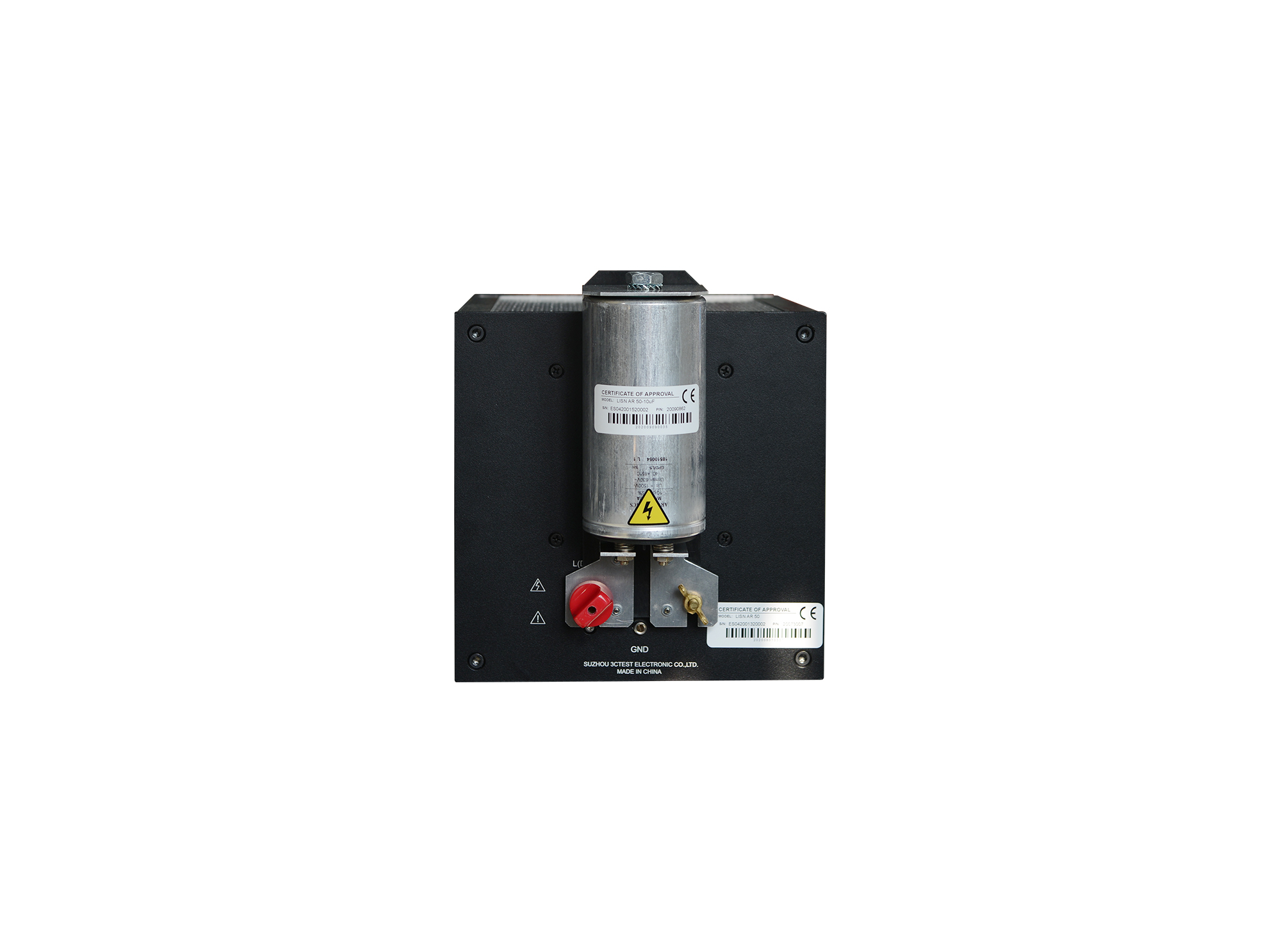

LISN AR 50（DC800V）

The LISN AR 50 Line Impedance Stabilization Network is designed in accordance with RTCA/DO-160 Section 20 and Section 22. It provides a defined power impedance for the EUT power input to ensure test result consistency.

During testing, the output port of the LISN AR 50 is connected to the EUT, while the input port is connected to the power supply. The 50 Ω coaxial output port is equipped with a BNC connector.

> Max. load current 50 A

> Test voltage DC 800 V, AC 530 V 400Hz, AC 270 V 890 Hz

> Frequency range 10 kHz ~ 400 MHz

> Standard BNC interface for EMI terminal
