Line Impedance Stabilization Network

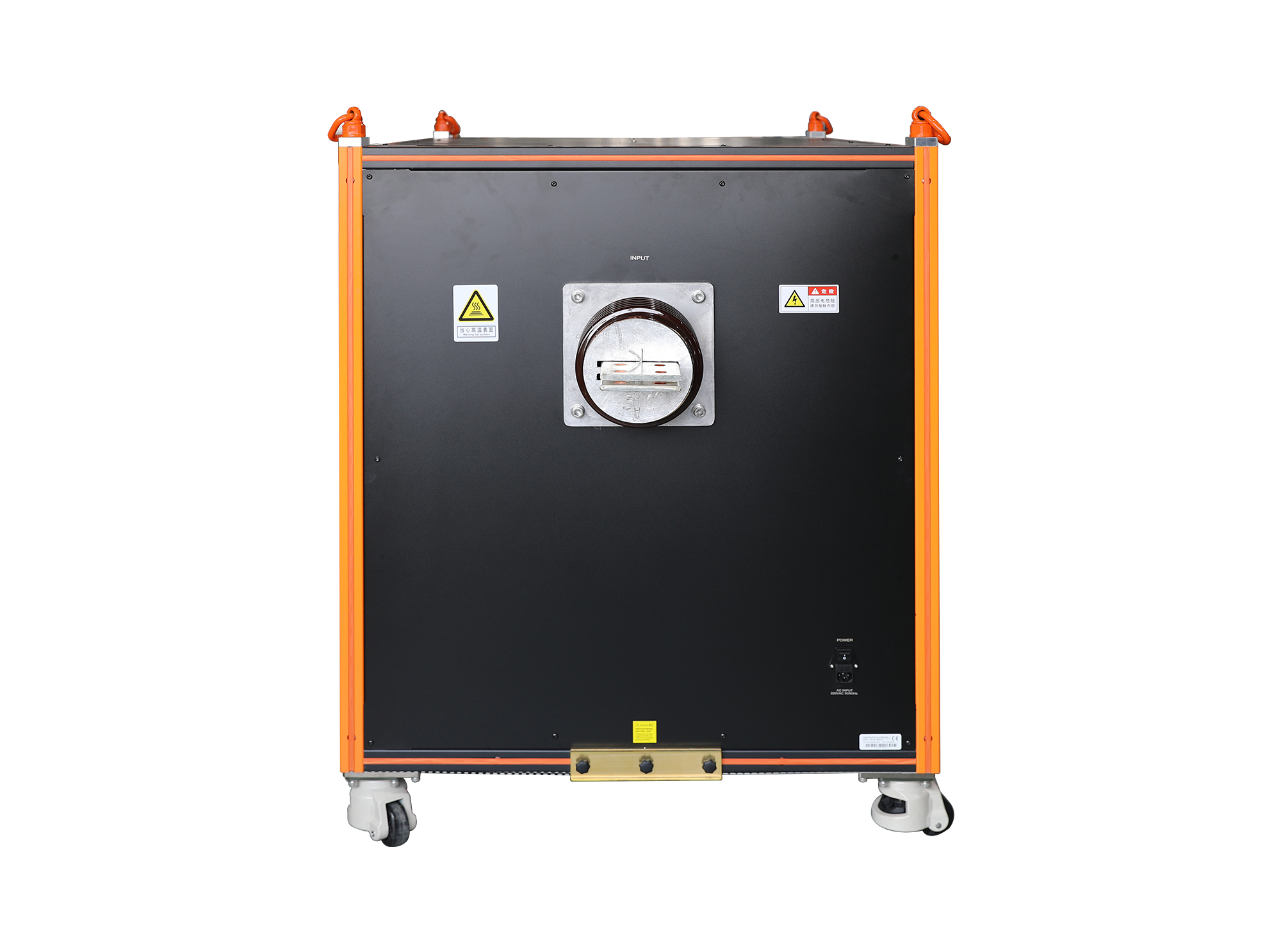

LISN ML 3000HVS

The LISN ML 3000HVS line impedance stabilization network is designed according to MIL-STD-461 and GJB 151. Designed for electromagnetic emission and susceptibility measurements of military equipment and subsystems, it provides the specified power impedance to EUT.

The Max. voltage of EUT port is DC 10.5 kV, L-L voltage 10.5 kV 50Hz, and the maximum current is 3,150 A. In test, the OUTPUT port is connected to EUT and INPUT port connected to power supply. The EMI port is type N.

> Max. continuous current is 3,150 A

> Test voltage DC 10.5 kV, L-L voltage 10.5 kV 50 Hz

> Frequency range 9 kHz ~ 10 MHz

> Standard N interface for EMI port
