Line Impedance Stabilization Network

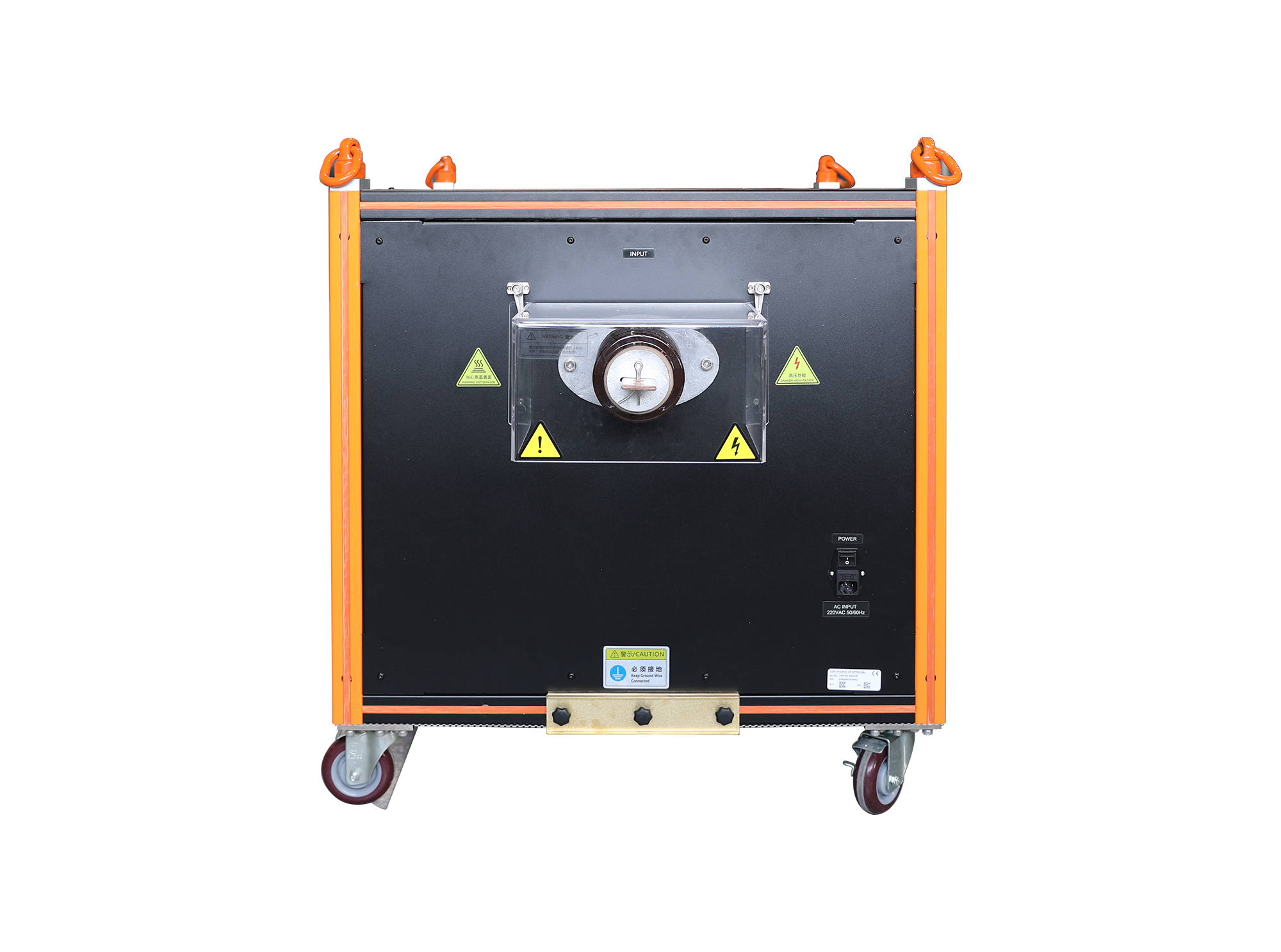

LISN ML 500HVS(11kV)

The LISN ML 500HVS line impedance stabilization network is designed according to GJB 151B/C and MIL-STD-461E.

Request a Quote Add to Compare Add to Quote List

Introduction

The LISN ML 500HVS line impedance stabilization network is designed according to GJB 151B/C and MIL-STD-461E. Designed for conducted emission testing, it isolates supply interference and provides specified line impedance to EUT.

The Max. voltage of EUT port is 11,000 V DC and 5,000 V AC at 50/60 Hz, and the Max. continuous current is 500 A. Standard N-type connectors are fitted for all EMI measurement ports.

Features

> Max. continuous current is 500 A

> Test voltage 11,000V DC; 5,000 V, 50 Hz/60 Hz

> Frequency range 9 kHz ~ 10 MHz

> Standard N interface for EMI terminal

Standards

GJB Standards

Other Standards

MIL-STD-461G

Application Areas

Specification

Technical Parameters

Impedance Frequency Range	9 kHz ~ 10 MHz
Max. Voltage	DC 11,000 V AC 5,000 V 50 Hz/60 Hz
Max. Current	500 A cont.
Inductance Characteristic	50 μH+5 Ω‖50 Ω
Coupling Capacitor	0.25 μF
Measurement Terminal	Type N

General Parameters

Accessories

Standard Accessories

Power Cord, Fuse, Grounding Bar, User Manual

Optional Accessories

Request a Quote

Interested in our products? Leave us a message, and our team will get back to you soon!

Prev: Line Impedance Stabilization Network Next: Line Impedance Stabilization Network Back to list

Working Power	AC 220 V(士10%), 50 Hz / 60 Hz (internal fan supply voltage)
Power Input Terminal	406、2Φ12 (copper busbar terminals)
Power Output Terminal	406、2Φ12 (copper busbar terminals)
Dimension	800 (W)900 (H)1,660 (D) mm
Weight	Approx. 215 kg
Atmospheric Pressure	86 kPa ~ 106 kPa
Ambient Temperature	15℃ ~ 35℃
Relative Humidity	45% ~ 75%, RH (no condensation)
