New Product Release: Conducted Immunity Tester CST CS114 (2kHz)

More Than Standard – Pursuing Precision and Reliability

CST CS114 is an automatic test system for cable‑injection conducted susceptibility testing specifically designed for the GJB 151 series of military standards. It covers the full frequency range from 2 kHz to 400 MHz and is compatible with the GJB 151A, GJB 151B, and GJB 151C standards. The system features a built‑in high‑dynamic‑range power meter, enabling real‑time closed‑loop monitoring and control of test levels – ensuring strict compliance with standard limits and improving repeatability and confidence in test results.

Learn More About the Product

Coverage of GJB 151 Series Military Standards

Strict Compliance with GJB 151C:2024
   The system performs cable‑injection conducted susceptibility testing (CS114) in accordance with the GJB 151C standard, and is backward compatible with GJB 151B:2013 and GJB 151A:1997, meeting the standard‑validation needs of military equipment across different program phases.

Closed‑Loop Testing with Real‑Time Monitoring
   During testing, the system continuously monitors the injected level on the EUT cable bundle, ensuring it remains within standard limits – safeguarding both test accuracy and equipment safety.

Fully Integrated – Ready to Use Out of the Box
   Built‑in signal generator, Class A broadband power amplifier, and power meter, together with PC control software, deliver end‑to‑end automation from calibration to final testing.

Built for High‑Reliability, High‑Efficiency Military Testing

Intelligent Control: Remote control via the PC‑based EMC(CS114) software, integrating parameter setup, test execution, data saving, and report generation into one seamless operation.

High Performance: Built‑in robust broadband power amplifier (2 kHz – 400 MHz) supporting high‑current injection, combined with a high‑sensitivity current monitoring clamp, covers a wide range of test scenarios.

Safe and Reliable: Closed‑loop level control mechanism continuously monitors the test signal and automatically limits output to protect the equipment under test.

High‑Accuracy Monitoring: Ultra‑wide dynamic current monitoring range (-60 dBm to +20 dBm) ensures accurate and reliable test data.

Easy Expandability: The system supports multi‑device coordination and data sharing, facilitating laboratory integration and workflow optimization.

Complete Package – Test Right After Setup

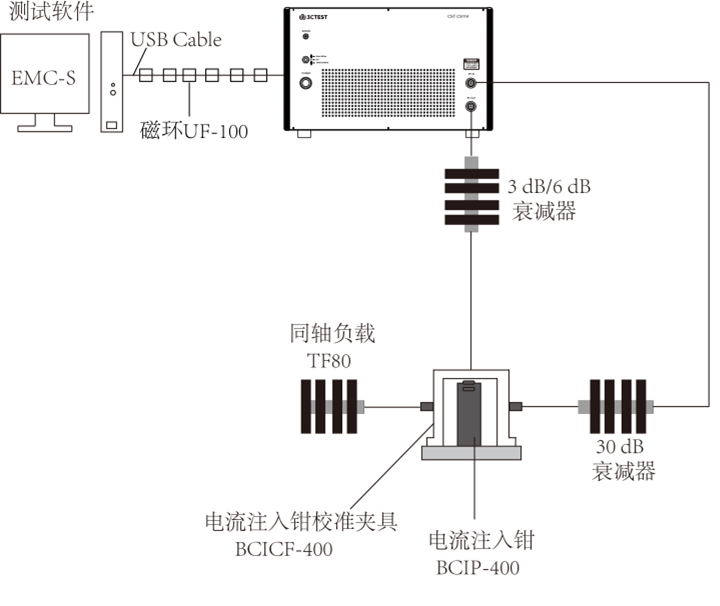

The CST CS114 system comes with a complete set of accessories, including test software, main unit, attenuators, loads, current injection probe, and calibration fixtures. Once installed, users can quickly begin standard‑compliant testing.

Test reports can be automatically generated by the software, with support for saving, printing, and internal sharing – significantly improving testing efficiency and data management.
