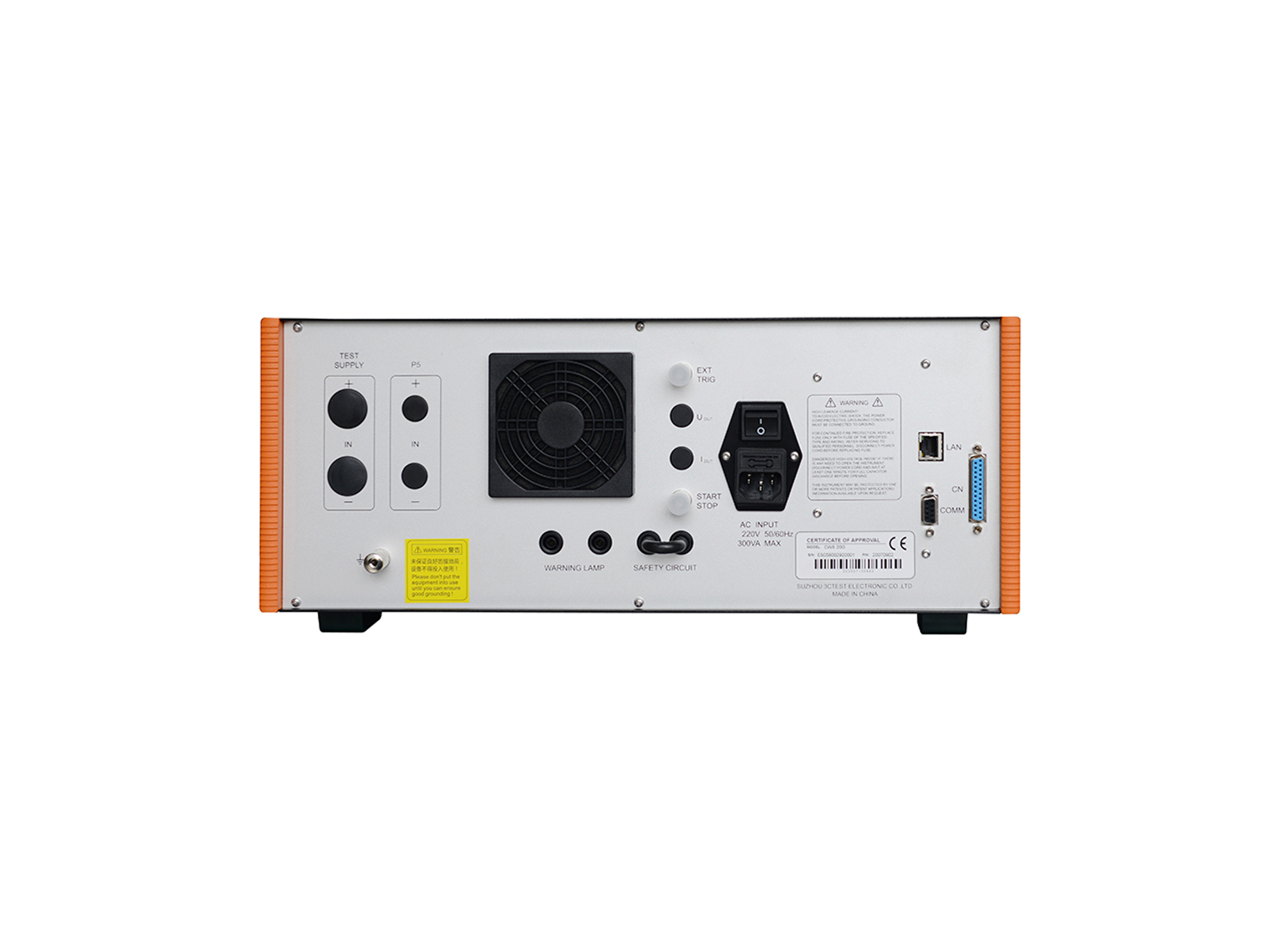

Combination Wave Lightning Surge Simulator

CWS 20G

The CWS 20G Combination Lightning Surge Generator is based on the company's third-generation control platform. It is designed according to the requirements of IEC/EN 61000-4-5, IEC 60950, IEC 62305-4, IEC 61643-1, ITU-T K17, ITU-T K21. It is a multi-waveform lightning surge generator developed according to customer testing requirements.

The CWS 20G integrates multiple surge waveforms, including 1.2/50 μs and 8/20 μs combination wave, 1.2/50 μs voltage wave, 5/50 μs voltage wave, 10/100 μs voltage wave, 10/200 μs voltage wave, 10/350 μs voltage wave, and 10/700 μs and 5/320 μs combination wave. It is mainly used for impulse voltage testing of surge protective device (SPD) varistors, integrated circuits, communication equipment, and other products.

> Support multiple pulse voltage waveforms generation

> 5.7-inch color touchscreen

> Test scheduling function, easy operation

> Ethernet, RJ45 Interface
