Vehicle Compact Transient Pulse Simulator

TIS 100Cx

The TIS 100Cx Series Vehicle Compact Transient Pulse Simulator can perform pulses 1, 2a, 3a and 3b on power lines as per ISO 7637-2, and signal and data lines as per ISO 7637-3.

Download Datasheet

Request a Quote Add to Compare Add to Quote List

Introduction

The TIS 100Cx Series Vehicle Compact Transient Pulse Simulator can perform pulses 1, 2a, 3a and 3b on power lines as per ISO 7637-2, and signal and data lines as per ISO 7637-3. When used with PC software, it can also perform Pulse 1b and Pulse 6 tests. The max. test voltage for pulses 3a and 3b is 1,000 V.

TIS 100Cx Series supports customization according to customer’s requests. It has built-in coupling/decoupling networks rated 80 V, 60 A and 100 A. When worked with LDS 200 series and APS series, its output port can be used as the main output port of the entire system. All devices can be controlled by Autolab PC control software, which makes the test simple and convenient.

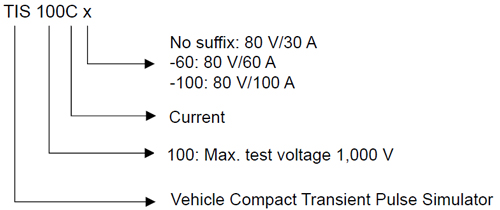

Naming Rules:

Test Connection:

Test Connection

Features

> 5.7-inch color TFT touch screen

> Built-in CDN rated 80 V, 60 A/100 A

> Support power line test pulses P1/2a/3a/3b; P1b/P6 are supported when used with PC software

> Support fast and slow transient pulse tests on signal and data lines

> Support DUT voltage, current monitoring and overcurrent protection

> Built-in power switch

> Integrated coupling network, can be used as output port of LDS or APS series

> Ethernet RJ45 interfaces for PC remote control and test reports printing

Standards

ISO Standards

GB/T Standards

GB/T 21437.2

EN Standards

Other Standards

View All Standards

Application Areas

Automotive Electronics

Specification

Pulse 1

Test Voltage	3 V ~ 600 V
Polarity	-
Rise Time (Tr)	0.5 μs ~ 1 μs 1.5 μs ~ 3 μs (no load)
Duration Time (Td)	50 μs ± 20% (no load) 12 μs ± 20% (2 Ω load) 1 ms ± 20% (no load) 1 ms ± 20% (50 Ω load) 2 ms ± 20% (no load) 1.5 ms ± 20% (10 Ω load) 0.2 ms ± 20% (no load) 0.3 ms ± 20% (no load) 0.5 ms ± 20% (no load)
Source Impedance	2 Ω, 4 Ω, 10 Ω, 20 Ω, 30 Ω, 50 Ω
Counter	1 ~ 9,999
DUT Voltage Monitoring	10:1
DUT Current Monitoring	40 A:1 V
Pulse Repetition Time	0.2 s ~ 999 s (Min. interval depends on output voltage)
Coupling Method	ICC, DCC (50 μs ± 20%, no load)

Pulse 1b (Used with AutoLab PC Software)

Pulse 2a

Pulse 3a/3b

Pulse 6 (Used with AutoLab PC Software)

General Parameters

Accessories

Standard Accessories

Test Cable, User Manual, Grounding Wire, Power Cord, DUT Power Cord, RF Cable, Coaxial Cable, Calibration Adapter, Fuses

Optional Accessories

Request a Quote

Interested in our products? Leave us a message, and our team will get back to you soon!

Prev: Vehicle Micro-Pulse Generator Next: High-Voltage Noise Simulator Back to list

Test Voltage	18 V ~ 1,000 V
Polarity	+: Pulse 3b - : Pulse 3a
Rise Time (Tr)	5 ns ± 30% (50 Ω load) 5 ns ± 30% (1,000 Ω load)
Duration Time (Td)	150 ns ± 45 ns (50 Ω load) 150 ns ± 45 ns (1,000 Ω load)
Source Impedance	50 Ω
Counter	1 ~ 200
Burst Repetition Time	50 ms ~ 999 ms
Pulse Frequency	0.1 kHz ~ 200 kHz
Test Duration	1 s ~ 50,000 s
Coupling Method	CCC, DCC

Built-in CDN	TIS 100C06: 80 V, 60 A TIS 100C10: 80 V, 100 A
Dimension	TIS 100C06: 4U rack, 450 (W)190 (H) 620 (D) mm TIS 100C10: 6U rack, 450 (W)280 (H) 620 (D) mm
Weight	TIS 100C06: 23 kg TIS 100C10: 30 kg
Working Power	AC 220 V, ± 10%, 50 Hz / 60 Hz
Ambient Temperature	15℃ ~ 35℃
Relative Humidity	35% RH ~ 85% RH (no condensation)
Trigger Mode	Automatic, manual and external trigger

Calibration Accessories for ISO 7637-3
1	Current Injection	Model: BCIP 7637-3 Frequency: 4 kHz ~ 100 MHz
2	Calibration Fixture	Model: BCICF-400 Frequency: DC-400 MHz Characteristic Impedence: 50 Ω
3	Direct Capacitive Coupling	Model: DCC-100 nF Capacitance: 100 nF Withstand Voltage: 200 V
4	Direct Capacitive Coupling	Model: DCC-100 pF Capacitance: 100 pF Withstand Voltage: 200 V
5	Direct Capacitive Coupling	Model: DCC-470 pF Capacitance: 470 pF Withstand Voltage: 200 V
6	Capacitive Coupling Clamp	Model: V-EFTC Coupling Capacitor: 100 pF ~ 200 pF, DC 5 kV
Calibration Accessories for ISO 7637-2
7	Calibration Resistor	Model	Resistance
		PVK 05	0.5 Ω
		PVK 1	1 Ω
		PVK 2	2 Ω
		PVK 4	4 Ω
		PVK 10	10 Ω
		PVK 20	20 Ω
		PVK 30	30 Ω
		PVK 50	50 Ω
8	Coaxial Attenuator	Model: AT2G-40dB-4G-B 40 dB, 50 Ω For calibration of pulse 3a / 3b
9	Coaxial Attenuator	Model: TFB 1000 60 dB, 1000 Ω/50 Ω For calibration of pulse 3a / 3b
Other accessories
10	Remote Control Software	Model: AutoLab > Support Windows 7/8/10/11 operating systems > Supports Ethernet > Supports scheduling and test sequence, easy for operation > Supports single test and sequence test reports printing, and user-defined templates > Supports emergency stop for safe test

Test Voltage	3 V ~ 200 V
Polarity	+
Rise Time (Tr)	0.5 μs ~ 1 μs 1.5 μs ~ 3 μs (no load)
Duration Time (Td)	50 μs ± 20% (no load) 12 μs ± 20% (2 Ω load) 1 ms ± 20% (no load) 1 ms ± 20% (50 Ω load) 2 ms ± 20% (no load) 1.5 ms ± 20% (10 Ω load) 0.2 ms ± 20% (no load) 0.3 ms ± 20% (no load) 0.5 ms ± 20% (no load)
Source Impedance	2 Ω, 4 Ω, 10 Ω, 20 Ω, 30 Ω, 50 Ω
Counter	1 ~ 9,999
DUT Voltage Monitoring	10:1
DUT Current Monitoring	40 A:1 V
Pulse Repetition Time	0.2 s ~ 999 s (Min. interval depends on output voltage)
Coupling Method	ICC, DCC
