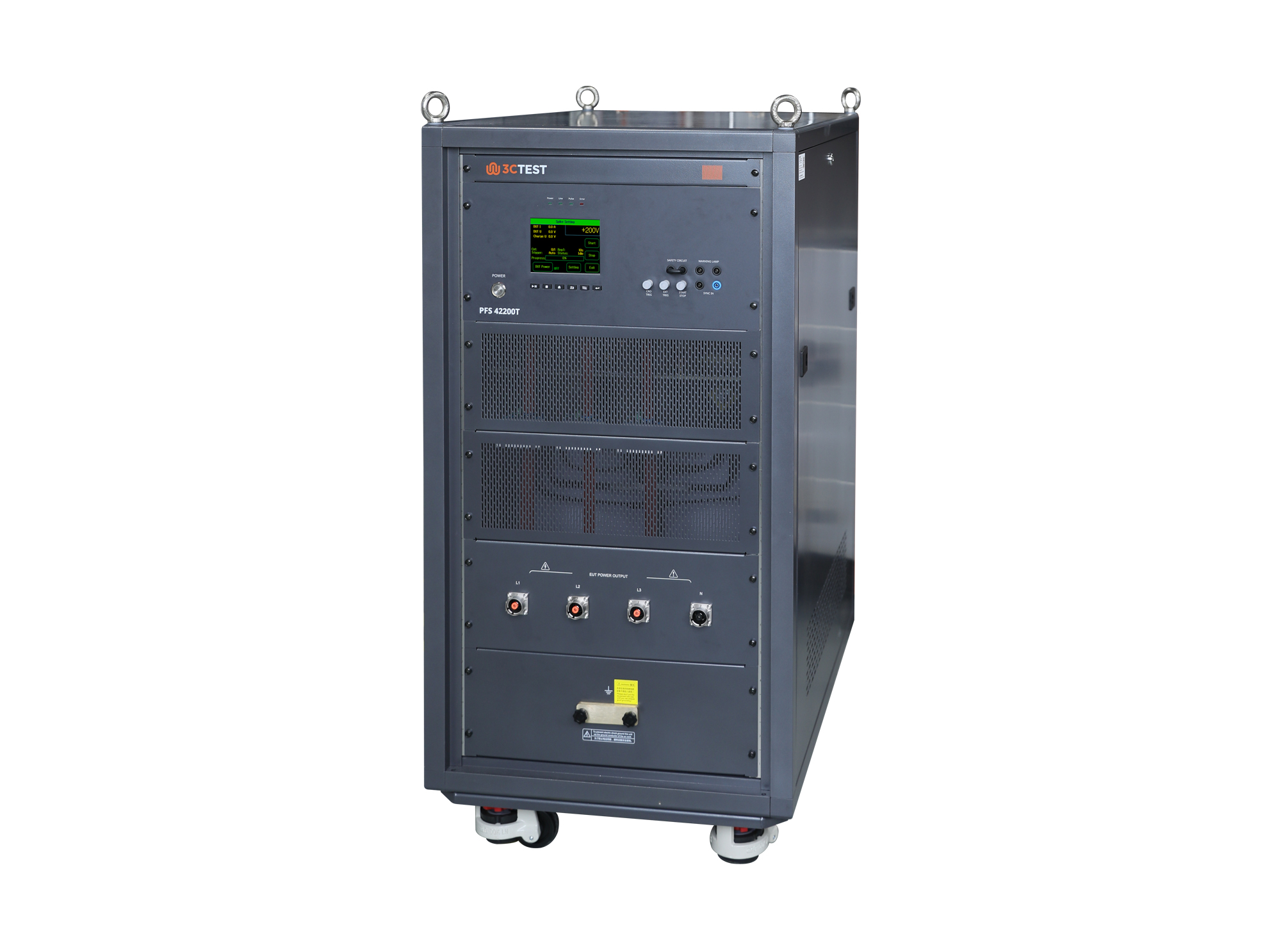

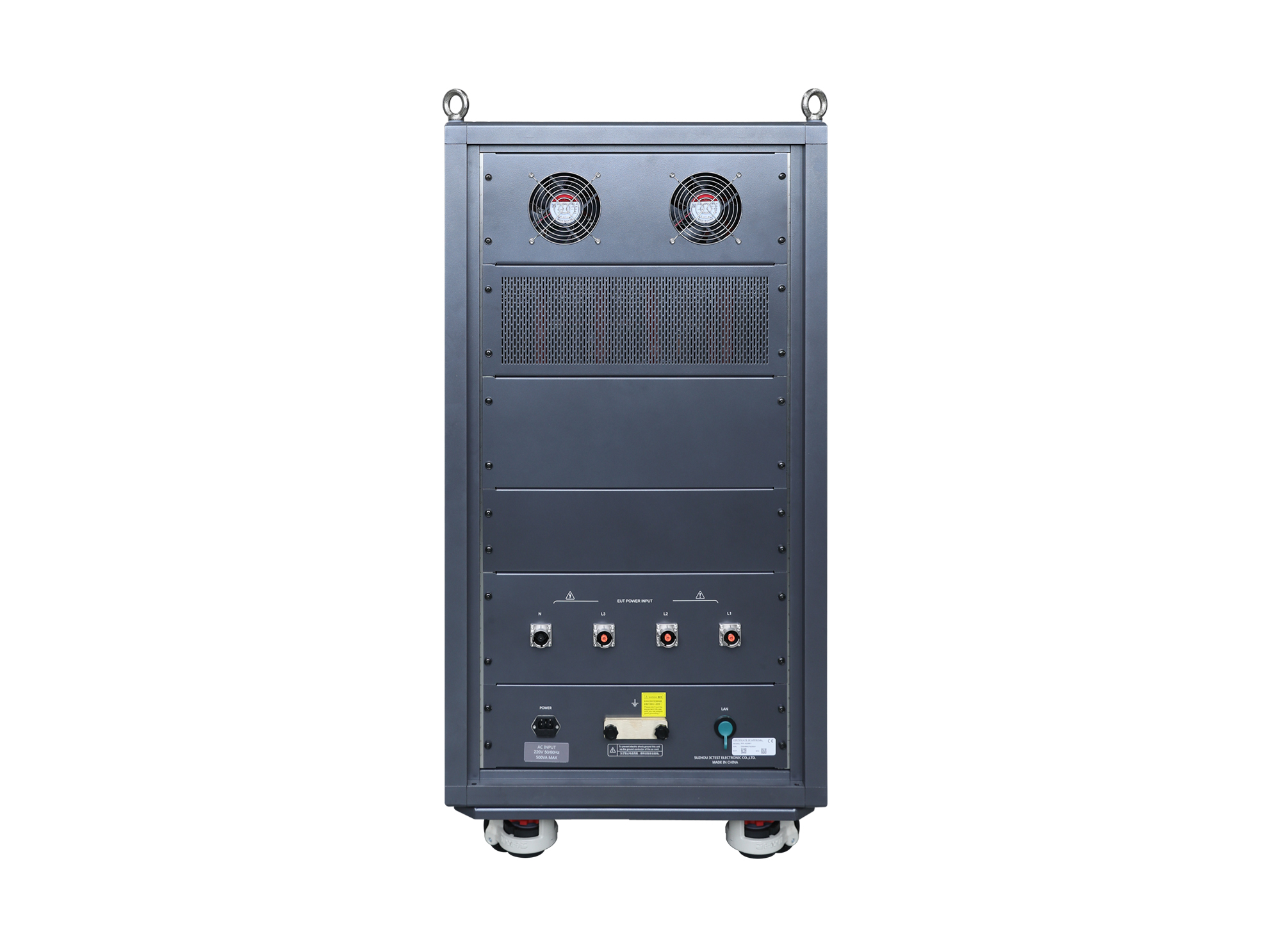

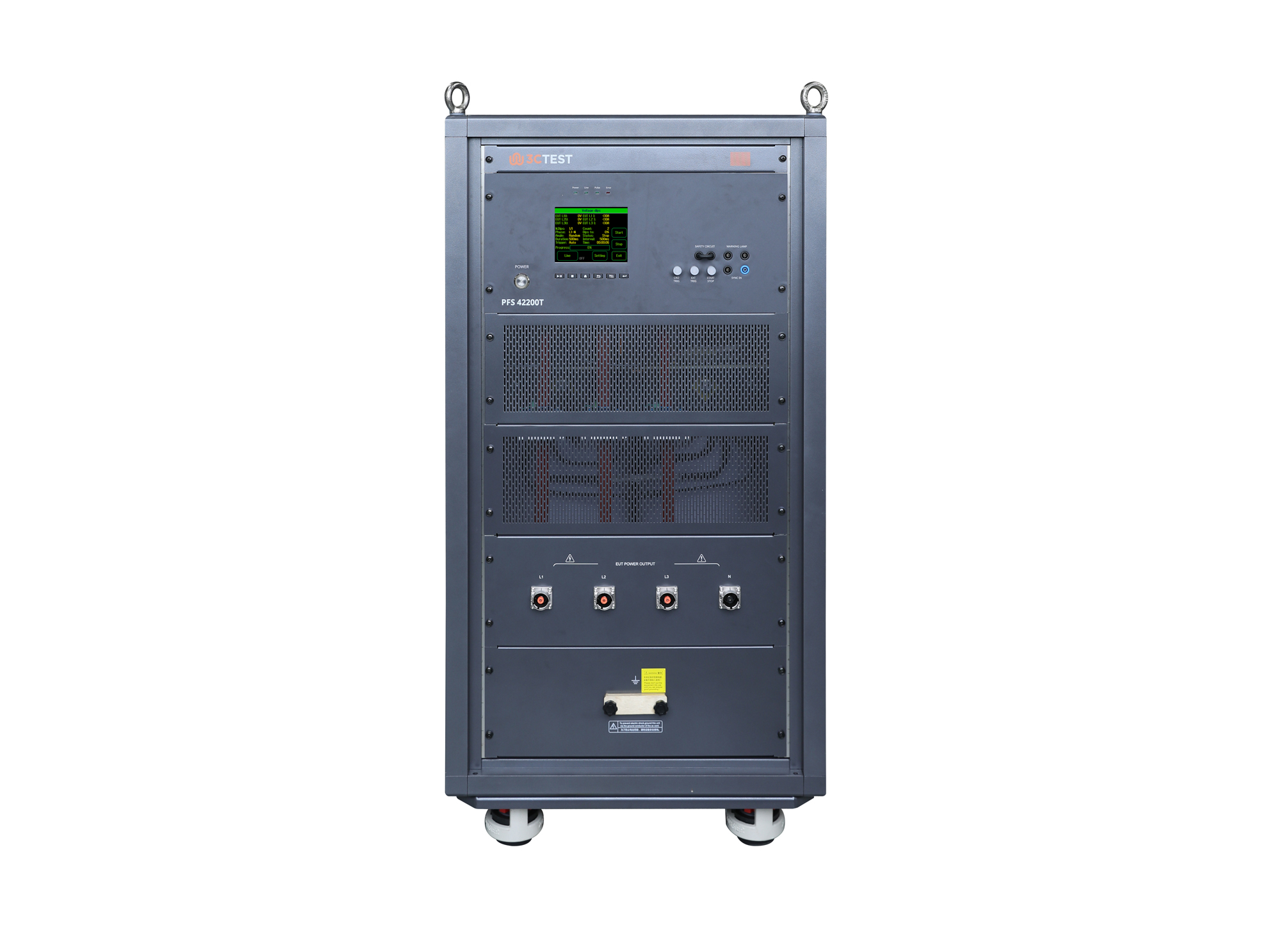

Power Disturbance Simulator

PFS 42200T

The PFS 42200T Power Fault Simulator adopts the company’s new-generation control platform, in compliance with IEC 61000-4-11/34 and GB/T 17626.11/34 standards. Equipped with controllable semiconductor switches, it can withstand instantaneous inrush current exceeding 1,000 A, and is integrated with electronic short-circuit protection.

PFS 42200T simulates voltage dips and short interruptions at input ports. Such voltage variations are generally caused by power grid faults, substation equipment failures or abrupt large load changes. Relevant tests are performed to verify whether electrical and electronic equipment can avoid unsafe operating states when subjected to sudden voltage fluctuations.

> 5.7-inch color TFT touchscreen front panel operation

> Max. output voltage 420 V AC; Max. continuous current 202 A

> Support voltage ang current real-time acquisition

> Built-in multi-functional test modules

> Support voltage-limiting, current-limiting, overvoltage and overcurrent protection

> Ethernet interfaces for PC remote control and test reports printing

> Optimized arc suppression and waveform control technology enables accurate simulation of power grid faults.

> Strong shock resistance and adaptability to extreme operating conditions

> Avoid waveform distortion under high voltage and high current
