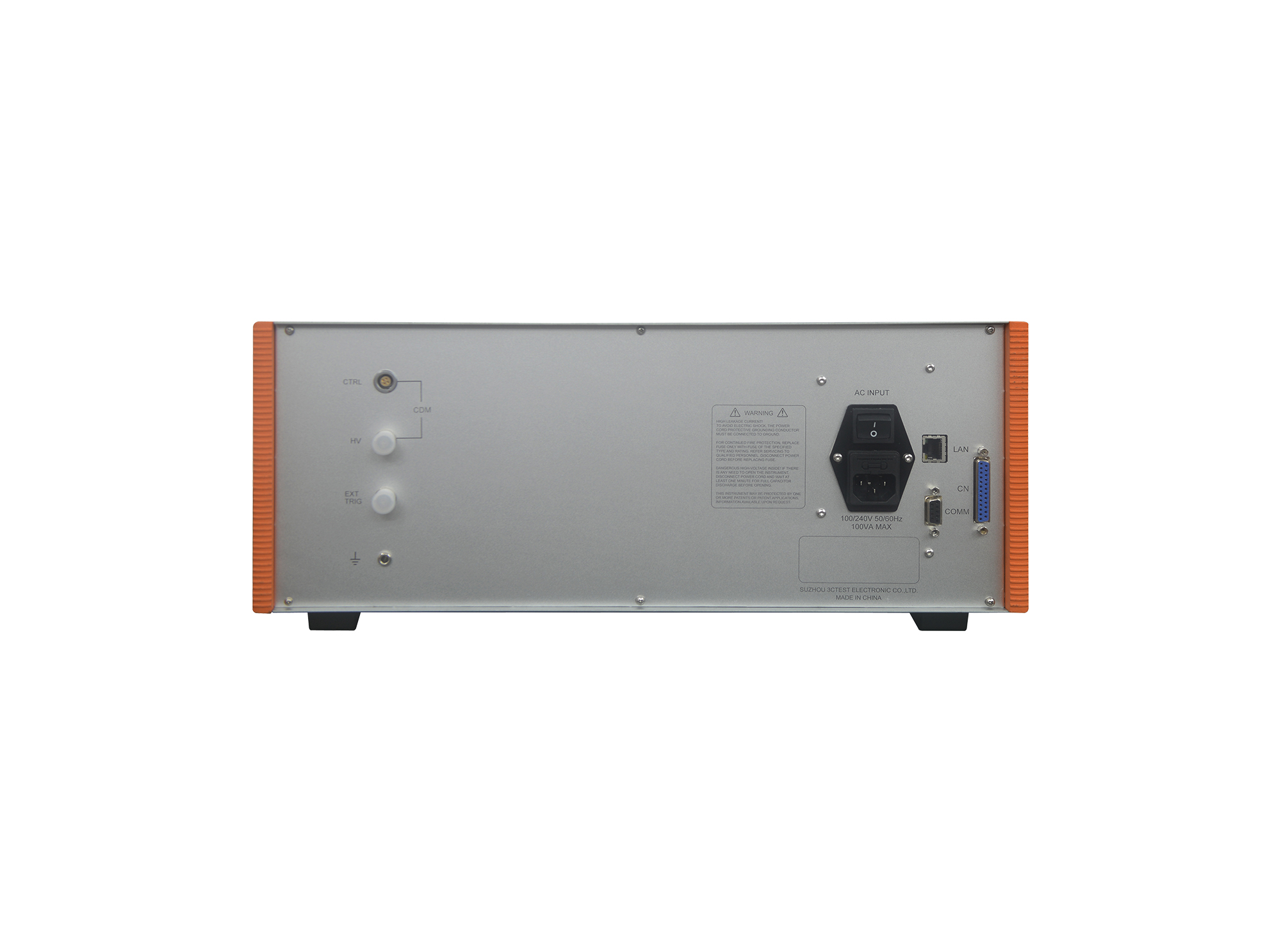

Electrostatic Discharge Simulator

EDS 10IC

The EDS 10IC Electrostatic Discharge Simulator complies with standards including ANSI/ESDA/JEDEC JS-001, ANSI/ESD STM5.1/2, JESD22-A114F/-A115C, MIL-STD-883G, etc.

Download Datasheet

Request a Quote Add to Compare Add to Quote List

Introduction

The EDS 10IC Electrostatic Discharge Simulator complies with standards including ANSI/ESDA/JEDEC JS-001, ANSI/ESD STM5.1/2, JESD22-A114F/-A115C, MIL-STD-883G, etc.

Specially developed in accordance with the characteristics and requirements of electrostatic discharge immunity tests for Human Body Model (HBM) and Machine Model (MM), it is capable of conducting ESD immunity testing on semiconductor components such as LEDs, transistors and ICs.

Features

> Minimum output voltage 5 V, 1 V step

> Intelligent Touchscreen Operation

> Support single-shot or automatic discharge testing; test counter and frequency are configurable

Standards

GJB Standards

GJB 548B

ANSI Standards

Other Standards

Application Areas

Specification

Technical Parameters

HBM Short-circuit Current Parameters
Discharge Capacitor	100 pF
Discharge Resistor	1,500 Ω
Pulse Amplitude	5 V ~ 8,000 V
Peak Current (Ips)	0.17 A ± 10% @250 V 0.33 A ± 10% @500 V 0.67 A ± 10% @1,000 V 1.33 A ± 10% @2,000 V 2.67 A ± 10% @4,000 V 5.33 A ± 10% @8,000 V
Rise Time	2 ns ~ 10 ns
Pulse Width	150 ns ± 20 ns
Ringing Amplitude	<15% Peak Current
HBM 500 Ω Resistor & Current Parameters
Peak Current (Ipr)	375 mA ~ 550 mA @1,000 V 1.5 A ~ 2.2 A @4,000 V
Ipr/ Ips	≥63%
Rise Time	5 ns ~ 25 ns
MM Short-circuit Current Parameters
Discharge Capacitor	200 pF
Discharge Resistor	0 Ω
Pulse Amplitude	5 V ~ 1,000 V (2,000 V can be customized)
Peak Current (Ip1)	0.44 A ± 20% @25 V 0.88 A ± 20% @50 V 1.75 A ± 10% @100 V 3.5 A ± 10% @200 V 7.0 A ± 10% @400 V
Ip2/ Ip1	67% ~ 90%
Circle	66 ns ~ 90 ns
MM 500 Ω Resistor & Current Parameters
Peak Current (Ipr)	0.85 A ~ 1.2 A @400 V
Current (I100) @100 ns	0.23 A ~ 0.40 A @400 V
I200/ I100	30% ~ 55%

General Parameters

Accesories

Optional Accesories

1	Test Line	Model: EDS 10IC-line1/line2 For test connection
2	Test support	Model: IC-DIP40 For placing IC
Power Cable, Grounding Wire, User Munual

Optional Accesories

Request a Quote

Interested in our products? Leave us a message, and our team will get back to you soon!

Prev: Handheld ESD Simulator Next: Electrostatic Discharge Simulator Back to list

Polarity	+, -, alternative
Frequency	0.1 Hz ~ 5 Hz
Trigger Count	1 ~ 999
Trigger Mode	Automatic, Manual, External Trigger
Working Power	AC 100 V ~ 240 V, ±10%, 50/60 Hz
Weight	Approx. 10 kg
Dimension	450 (L)190 (W)320 (H) mm
Ambient Temperature	15℃ ~ 35℃
Relative Humidity	45% ~ 75%
Atmospheric Pressure	86 kPa ~ 106 kPa
